4. Adjust the angle of the fork relative to the floor
to 90 degrees.
5. Retighten the Allen screws..
Warning:
•
As this is difficult to see, you can check this
by driving the chair forward and backward
slightly, with the caster fully swinging from
back to front. If the castor axle is vertical,
there is no measurable or visible difference
in height between the frame tubes and the
substrate during this operation.

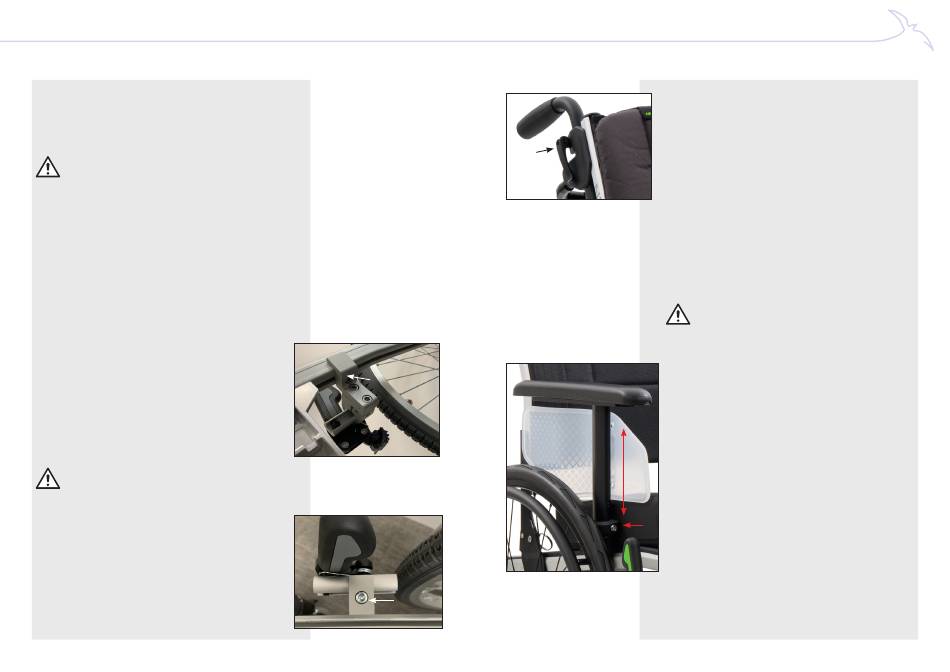

Adjusting tire brakes
When changing the seat height, seat depth, seat
angle and balance point, it is necessary to readjust
the tire brakes.
Rough adjustment
1. Loosen the Allen bolt (A) on the underside of the
brake clamp.
2. Slide the brake forward or backward through
the seat frame tube until the desired position in
relation to the tire is reached.
3. Retighten the Allen bolt (A) on the underside of
the brake clamp.
Warning:
•
In certain configurations, the tire brakes are
mounted on the front module. Then it is not
possible to use the rough adjustment, only the
fine adjustment.
Fine adjustment
1. Loosen the Allen bolt (B) at the top of the brake
clamp.
2. Set the band brake to the desired position.
3. Retighten the Allen bolt (B) at the top of the
brake clamp.
EN24
A
A
A A
B B
Adjusting the height of a push handle
1. Unlock the quick-release lever (A) by moving the
lever upwards
2. Adjust the push handle to the desired height.
3. Lock the push handle by placing the quick-
release lever (A) vertically against the frame
Armrests
The armrests are adjustable in height, depth and
width.
Inserting the armrests
Insert the plug-in tube with the armrest straight
down into the side holder.
Note:
• Make sure the side shield is on the seat side, not
the wheel side.
Removing the armrest
Lift the armrest (with side shield) vertically up from
the side holder.
Adjusting the height of the armrest
1. Loosen the Allen screw (A) on the front of the
armrest.
2. Adjust the armrest to the desired height.
3. Retighten the Allen screw (A).
Adjusting the depth position of the armrest
A
A
1. Loosen the Allen screw (B).
2. Set the desired depth.
3. Retighten the Allen screw (B).
EN25
