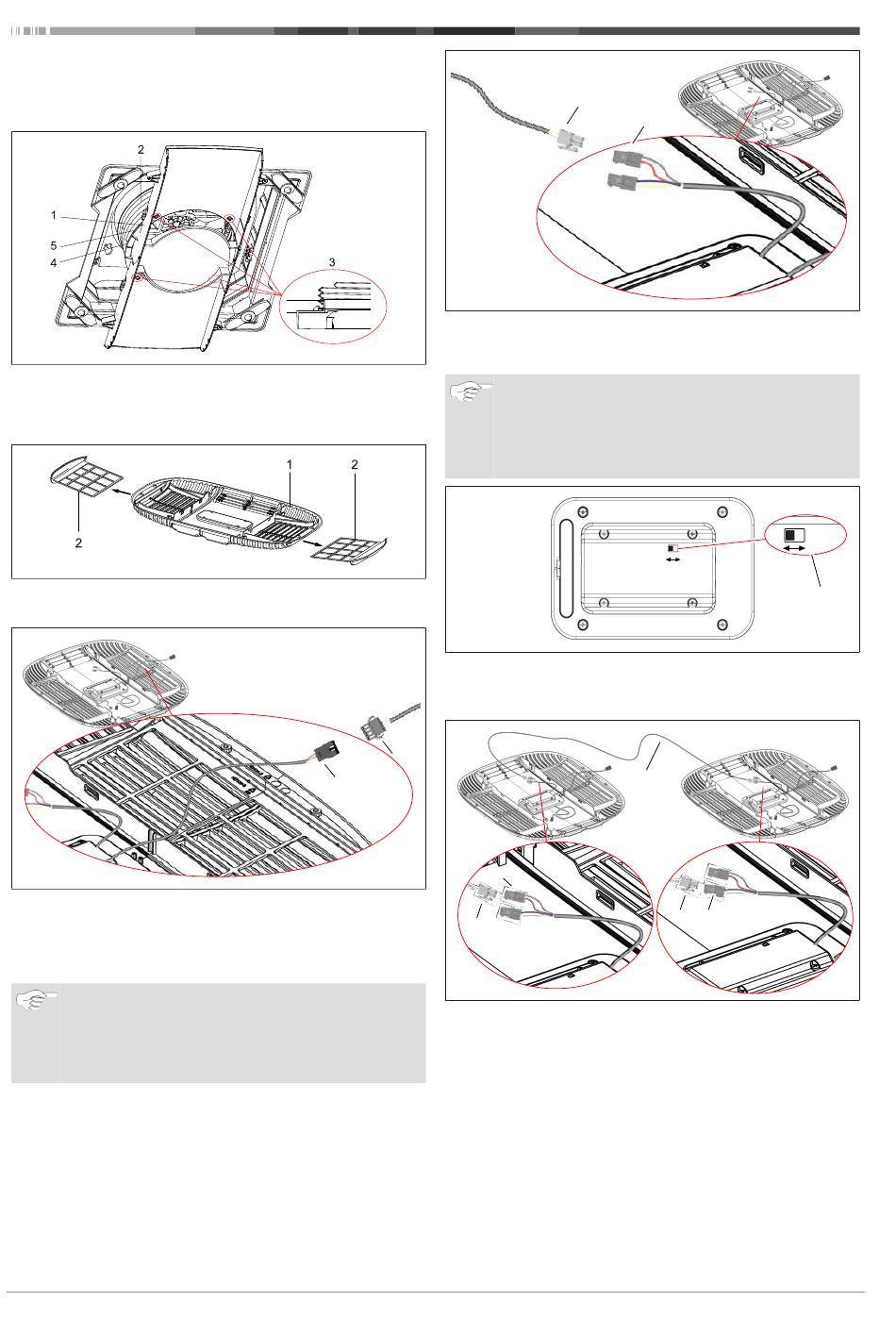

5 | Installation instructions
3.
You will know that the duct is correctly connected when
you hear distinct clicking sounds of the four latches, and
when the rim of the duct (5) is parallel to the surface of the
bracket (4).
Fig. 21 Connecting the air outlet duct
5.13
Connecting the indoor and outdoor
unit cables
Fig. 22 Removing the air filter
1.
Remove the air filters (2) from the air distributor (1).
Fig. 23 Connecting the outdoor unit connector to the CI-BUS unit
2.
Insert the outdoor unit connector (1) into the correspond-
ing connector (2) of the CI-BUS unit.
5.14
Connecting the CI-BUS cables
NOTE
This chapter is only applicable if the Cool Top Trail 20G
- 24G indoor unit is equipped with a CI-BUS unit and
this CI-BUS unit must be connected to an external CI-
BUS system.
10 / 146
Fig. 24 Connecting the CI-BUS system to the CI-BUS unit
1.
Insert the CI-BUS connector (1) into the corresponding CI-
BUS connector (2) of the CI-BUS unit.
NOTE
Switch settings
If you have two Cool Top Trail air conditioners, both
with a CI-BUS unit installed, you must set the ID-switch
of each CI-BUS unit differently.
Fig. 25 Top view of the CI-BUS unit
2.
Set the ID-switch (1) in the left position for one CI-BUS unit
and in the right position for the other CI-BUS unit.
1
2
3
2
Fig. 26 Connecting two CI-BUS units
3.
If two Cool Top Trail air conditioners are installed, use the
interconnection cable (1).
4.
Insert the connector (2) of the cable into the CI-BUS con-
nector (3) of the first CI-BUS unit
5.
Insert the other connector (4) of the cable into the auxiliary
CI-BUS connector (5) of the second CI-BUS unit.
5.15
1.
Attach the air distributor (1) to the air distributor mounting
bracket (3) by engaging the two parts.
1
2
1
4
Installing the air distributor
assembly
9045225A_OI-II_Cool Top Trail 20G-24G ML
1
5
