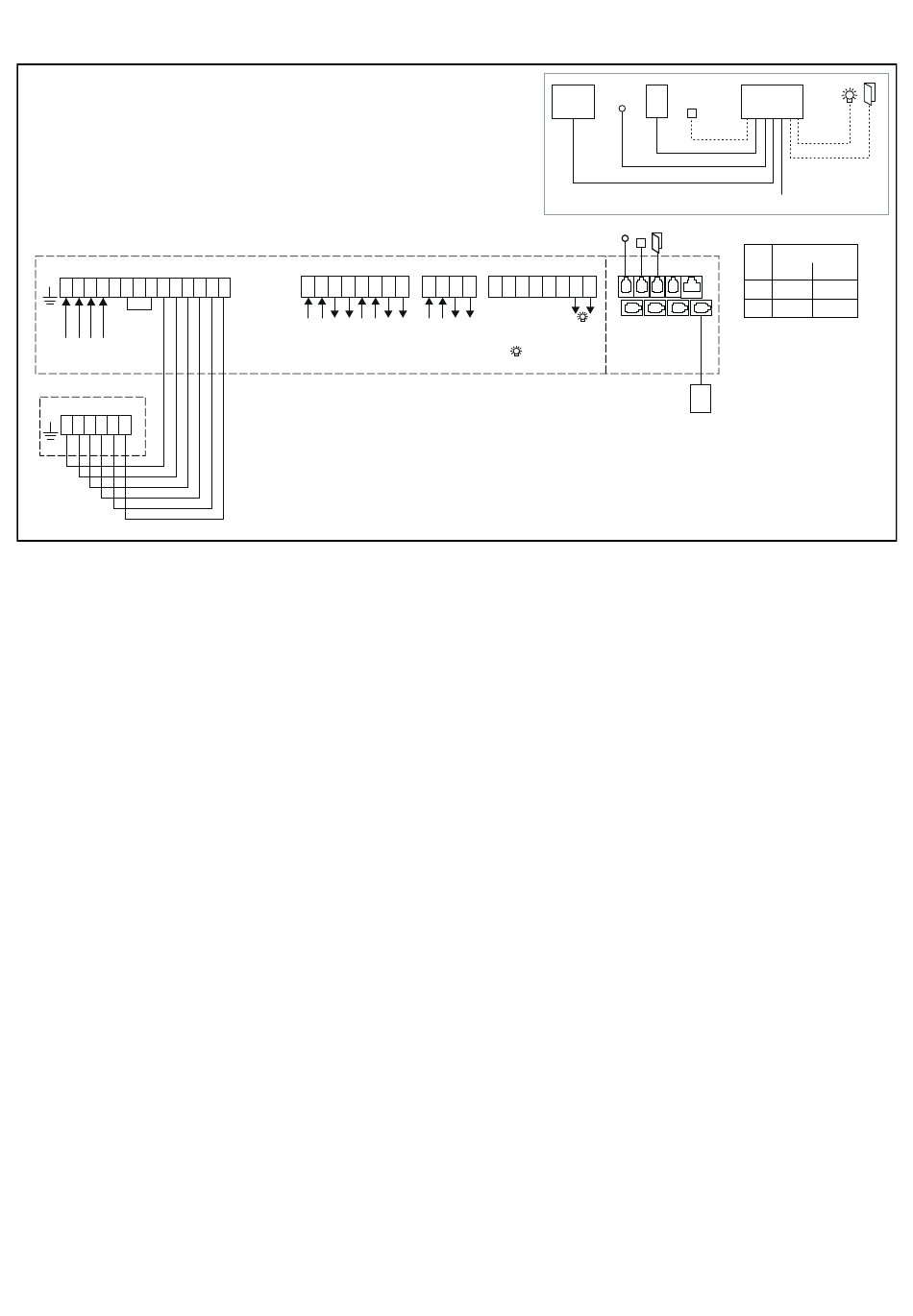

WIRING DIAGRAM 400-415 V 3N~
2
G
L
L
L
U
V
W
N
A
B C D
1
2
3
1
2
3 4 5 6
L1
L2 L3 N
1
G
U V W
Z X Y
1 2 3
4 5 6
Fig 24: Control panel Pure, Elite
1. Sauna heater Sense Commercial 16-20
2. Relay box RB Commercial
2A. RB Commercial PCB
3. Control panel Pure, Elite
4. Sensor
5. Lighting
6. External on/off switch (option)
7. Door contact (option)
SELF-INSPECTION OF THE INSTALLATION
To check the installation:
1.
Switch heater on (see User Guide).
2.
Check that the control panel lights up (control panel Pure,
Elite).
3.
Start the heater (see User Guide).
4.
Check that all tubular elements start to heat up (go red).
2
A
A A
A B
Z
X
Y
1 2 3
4
1 2 3
*
200-
200-
AUX0
240 V~
240 V~
*
Max 10A
2
2
B B
B
C
C C
C
G M H V 1 2 3
4
1 2 3
4
*
*
200-
AUX1
AUX2
240 V~
1.5 mm²
200-240 V~ Max 100W
Please keep these instructions!.
In the event of problems, please contact the retailer where you purchased
the equipment.
© This publication many not be reproduced, in part or in whole, without
the written permission of Tylö. Tylö reserves the right to make changes to
materials, construction and design.
4
6
1
3
RJ10 4P4C
RJ10 4P4C
RJ10 4P4C
7 x TAB
* Elite - max 30m
** Pure - max 100m
4 6 7
2A
V V
B B
1
2
3 4
5
6
7
8
9
3
7
5
2
3 x 1.5 mm²
* **
RJ10 4P4C
5 x TAB
TAB
