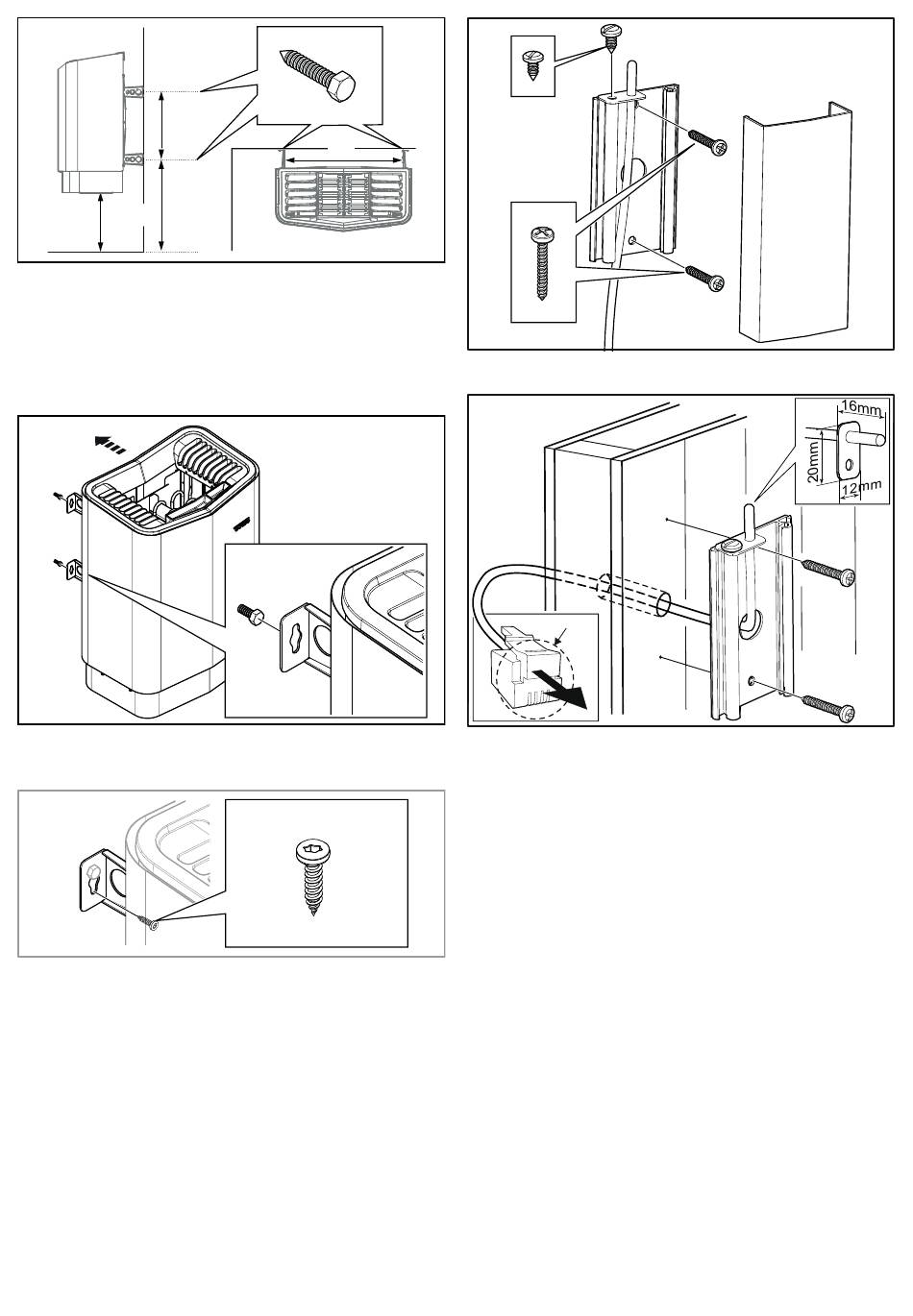

Figure 12: Dimensioning
1. 599 mm
2. 270 mm
3. 426 mm
4. 310 mm
7.
Hang the heater on the screws see Fig. 13.
Figure 13: Hang the heater up.
8.
Lock the heater into place with the lock screw see Fig. 14.
Figure 14: Lock screw for bracket
9. Install the sensor on the wall see Fig 15. The thermistor wire
may also be passed through the wall. Seal any holes in the
wall behind the sensor, see Figure 16. The thermistor wire
may be extended outside the sauna using low voltage wire
(2-lead).
1
Figure 15: Installing the sensor
Figure 16: Wiring through the wall.
Unusual voltages/numbers of phases
Contact Tylö Customer Service before connecting to voltages or
numbers of phases that are not listed in the wiring diagram.
External ON/OFF switch (option)
External ON/OFF switch can be installed anywhere outside the
sauna. The switch works for impulse or constant deactivation.
The heater circuit automatically recognises which is used. Heater
status and faults on the door contact can be seen if the switch has
a built-in LED.
See instructions supplied with the external switch.
Door contact (option)
The door contact is necessary to be able to use the Pure panel's
preselected time or the Elite panel's calendar function, plus remo-
te control the sauna via external switch, mobile or PC apps.
See instructions supplied with the door contact.
Min. Ø13mm
