6.4 Battery warranty:
Battery warranties are subject to periods set by the
manufacturers. However, most of these warranties are subject
to a wear and tear clause, and if you genuinely wear out
your batteries in 6 months, it will not be possible to obtain a
replacement under warranty.
6.5 Replacing batteries
The wheelchair uses two 12V non-spillable AGM batteries
in series, these batteries are fully sealed and require no
maintenance.
Replacing and servicing batteries is to be done by qualified
specialist.
In case of malfunctioning batteries, contact your local dealer.
Qualified specialist instruction:
•
Disconnect the batteries as described in Section 6.6 below
•
Remove the first battery
•
Slide the second battery forward and then remove
DANGER!
• Do not attempt to replace or service batteries without the
supervision of trained and qualified personnel.
6.6 Disconnecting batteries for air transport.
The batteries are contained within the drive unit located under the
battery shroud.
To disconnect the batteries on Mid-wheel drive:
• Release the two handle screws under the front of the seat frame,
that connect the seat frame with the seat module interface,
(Fig.6.2).
• Flip the seat frame backwards (Fig.6.3).
• Ensure the seat is secured with the seat stay in place, before
letting go, (Fig.6.4 - A). You must make sure that the red seat
stay is fully latched onto the pin.
• Lift off the battery box lid, (Fig. 6.4 - B).
• Disconnect the 2 pin Anderson connectors from each battery
(Fig.6.5).
To reconnect the batteries reverse the above procedure.
Q300 M Mini | Rev. H | English

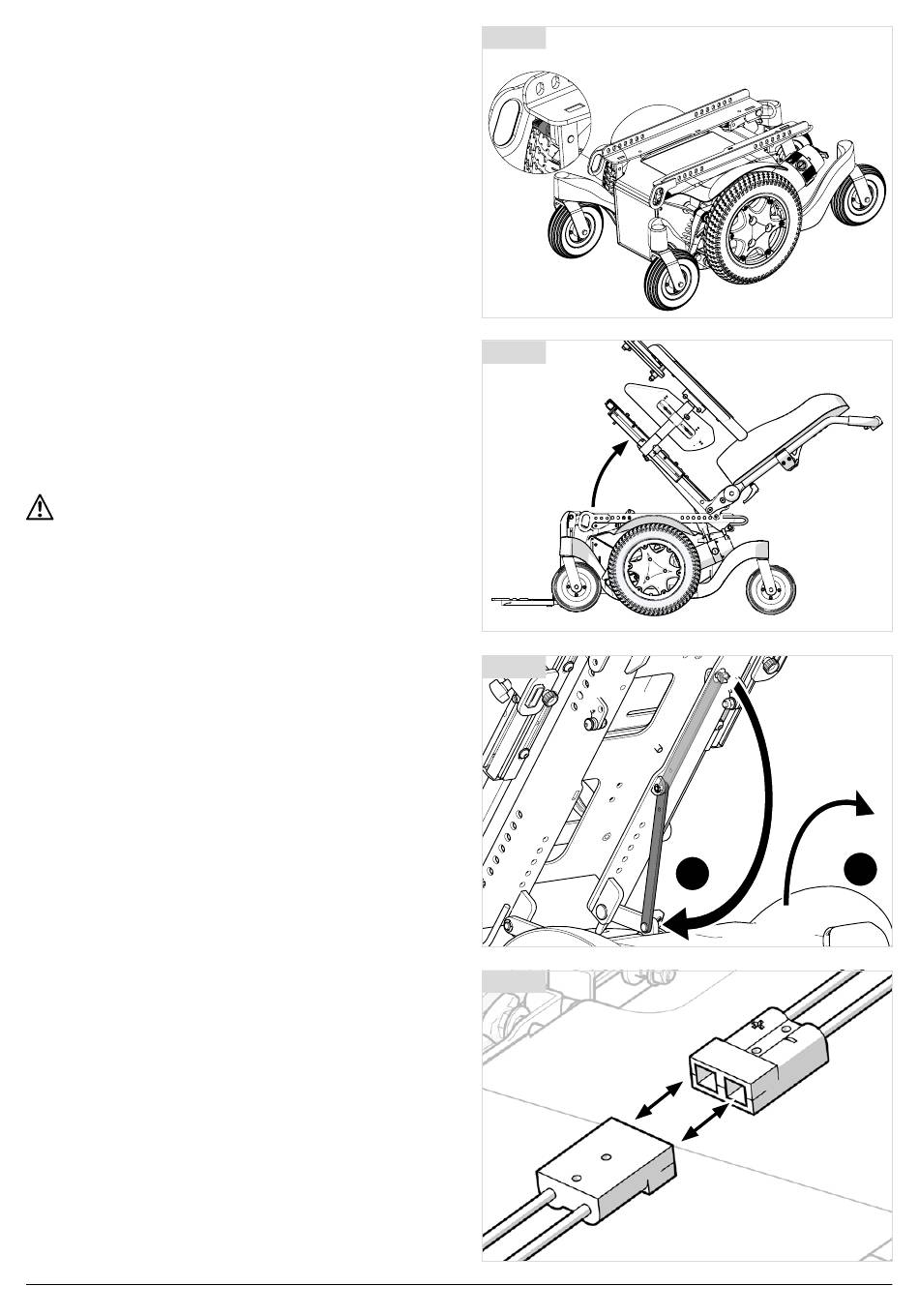

Fig. 6.2
Fig. 6.3
Fig. 6.4
Fig. 6.5
B
A
