Fig. 8.7
Fig. 8.9

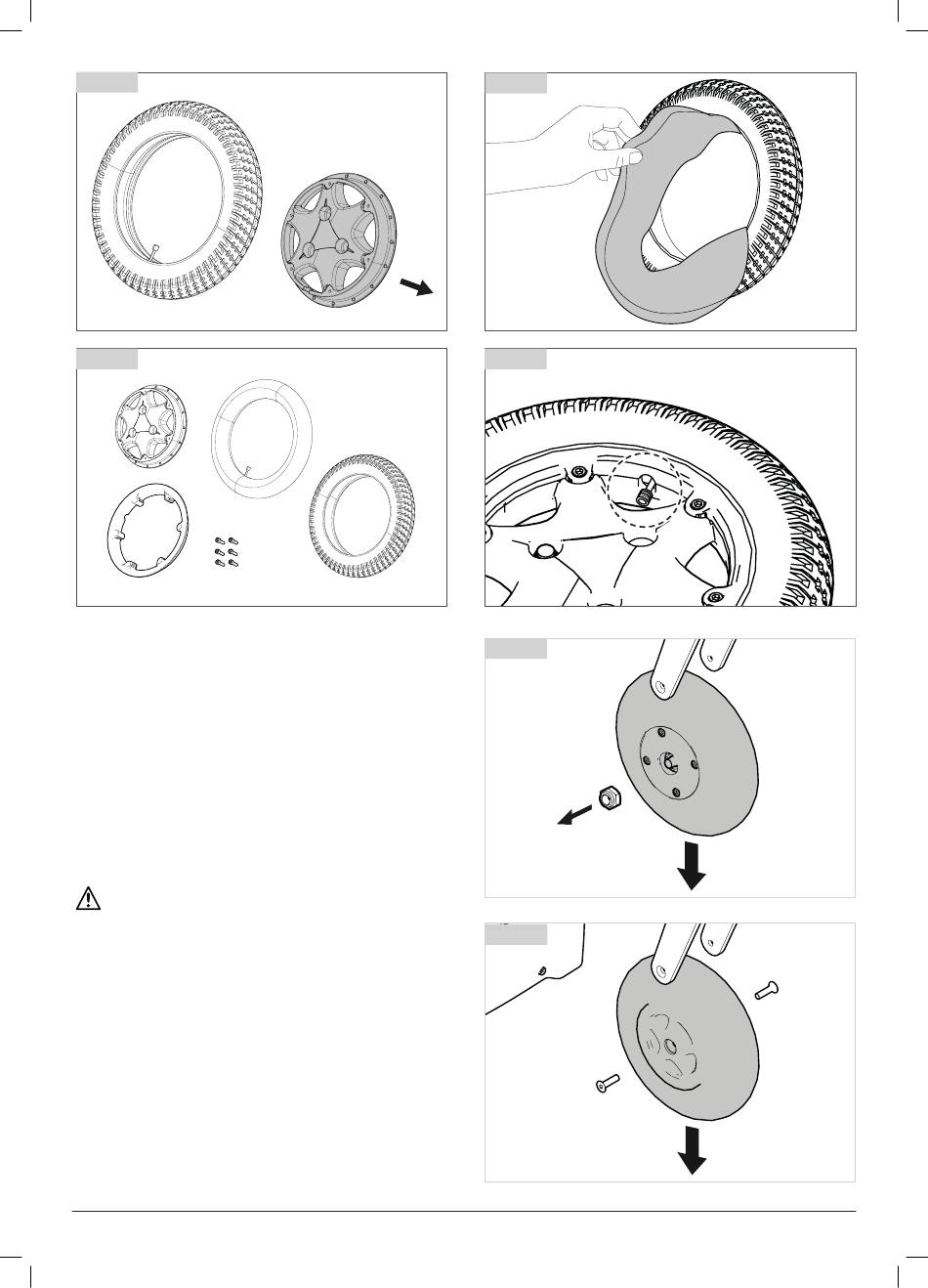

8.2.4 Removing the castor wheels (M base) (Fig.8.11).
• Use a 17.0 mm spanner/socket to undo the axle bolt.
• Remove the nyloc nut.
Removing the castor wheels (F/R base) (Fig.8.12)
• Use a 13.0 mm wrench and 5 mm Allen key to undo loosen
the screws.
• Remove both screws
Refitting:
When refitting do not try to force the bolt through. Gently
move the wheel back and forth until the bolt slips through
then tighten to a torque of 14Nm.
WARNING!
Always use a new nyloc nut when refitting.
36
Fig. 8.8
Fig. 8.10
Fig. 8.11
Fig. 8.12
Q400 M/F/R | Rev. J | English
