8. Attach the five screws together with the spacer/spacers, lock
plate and stiffener plate (Tightening torque: 16-18 Nm/13.3
lb.ft). Then add plastic spacers (D) to prevent the batteries from
coming into contact with the nuts (Fig. 7.16).
Please refer to Section 6.6 of this manual for reverse the
procedure to replace batteries.

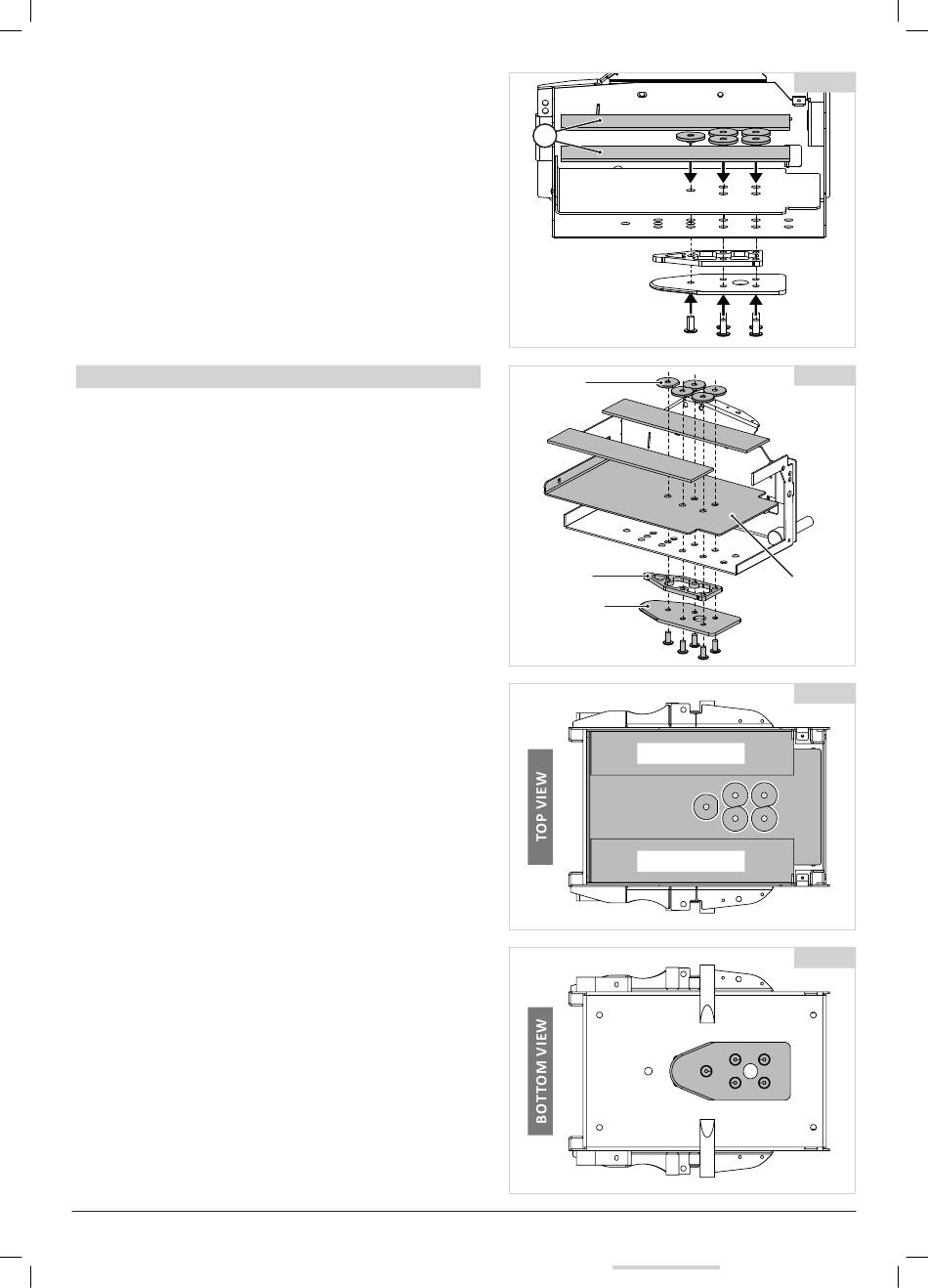

Fitting the Dahl lock plate - end result (Fig. 7.17-7.19)
Q700 M/M HD/F/R/UP-M/UP-F | Rev. K | English
D
Nut
Spacer
Lock plate
Plastic spacer
Plastic spacer
BOTTOM VIEW
Fig. 7.16
Fig. 7.17
Stiffener
plate
Fig. 7.18
Fig. 7.19
31
