Folding, Moving and Unfolding Instruction

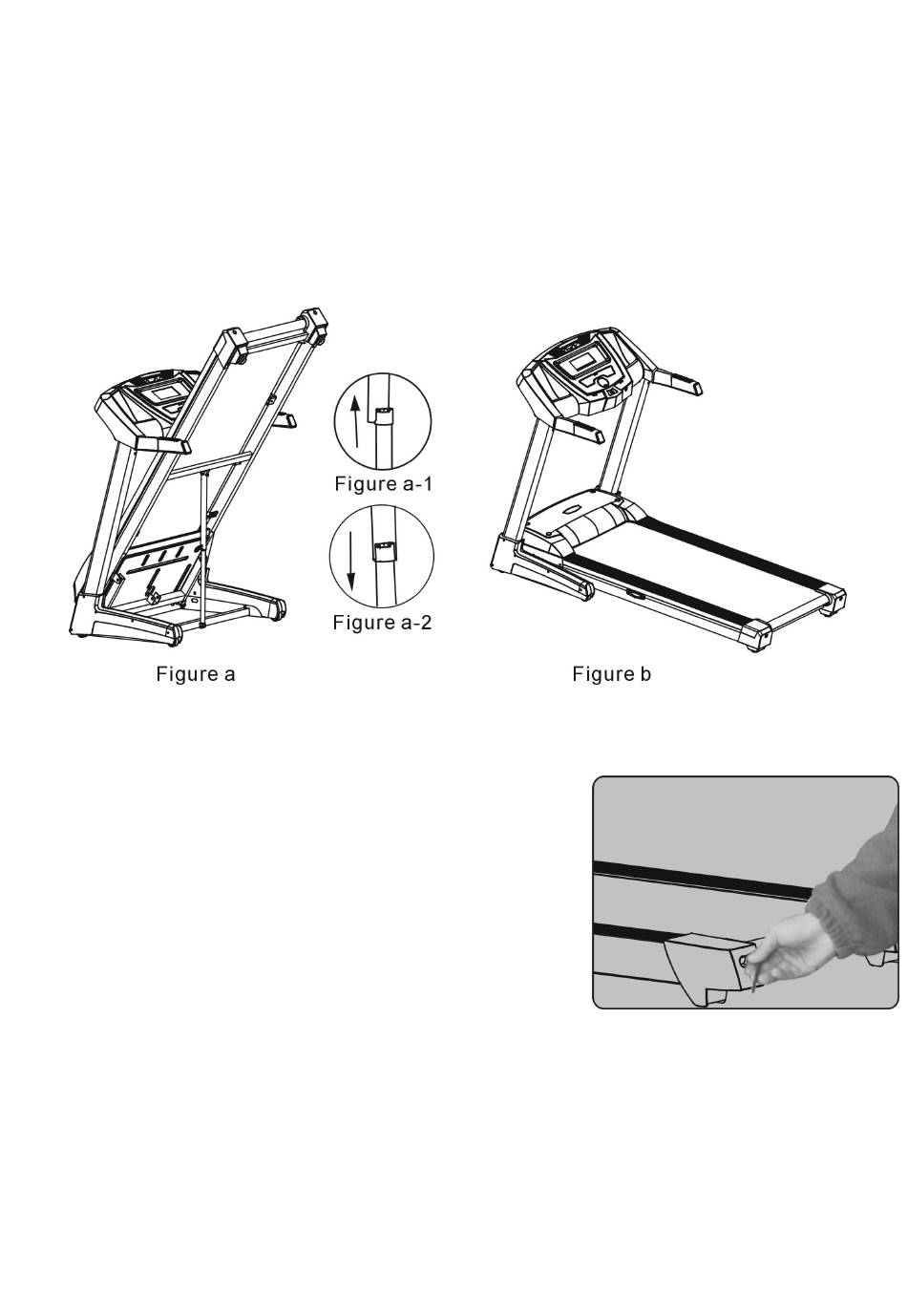

1) Folding: The treadmill is foldaway. Lift the end of the main frame and fold upwards until the connecting
bar rebound to the cover of cylinder tube. (See figure a)
2) Moving: Press the handrails to make the front base foot away from the ground then push the treadmill
after folding.
3）
When you want to put the treadmill to the work position, please lift the end of main fame (end cap) a
little to make the foldaway support tube higher than the cylinder cover (see figure a-1), tip the foldaway
support tube with your foot slightly (see figure a-2), press the end of main fame (end cap) forcibly, remove
your foot and keep on pressing the end of main fame for a while. The cylinder will shrink under the weight of
itself (see figure b) and the main fame goes flat.
Maintenance and Malfunction Treatment
1) The surface of the treadmill should be kept clean, pull out the
power line before cleaning. You can clean the running belt and the
surface of the treadmill with a soft and wet cloth.
2) The running belt is adjusted at factory; it may runs defectively
after transportation and use. Turn off the treadmill before adjusting,
pull the belt in the center, and then adjust the left and right bolts in
rear roller with hex spanner (See figure ) it is better to adjust 1/2
circle once. Then turn on the switch, check if the belt
10 runs defectively when the running speed is 4~5 km/h.
3) After using over 100hours or the lubricant between the running board and the running belt is used up,
please lubricate the running board and adjust the running belt well.
4) After a long time of running, the belt may be longer and stuck. You should turn the left and right adjustor
bolt in rear roller clockwise at same position till the runs smoothly and freely.
