VIDEO DISC
PLAYER
CASSETTE
RECORDER
OUTPUT
DIGITAL ANALOG
INPUT "OUTPUT:
REC PLAY REC PLAY
DIGITAL OUTPUT
USA & Canadi
dels onl
Worldwide models only
anacsan Moses
ONY.
OPTICAL
OIGITAL OUTPUT
DIGITAL
AUDIO
UNIT
with Optical
Digital Output
PAOCSSSOF
Ground connection
is not necessary
for turntable
without ground
jead
Se
KOK
Et
ne
J
fl '
D-D-O-0-O--D-:
4
t
d
'AC OUTLETS.
ACTZOV GOH
SPEAKERS
S
Broan
jetssc den wend mts]
0
'g
()
i
'
4
—~
=
=
uxeunrenao | | flo
i amas
WS
©
OD OO
©
AC POWER
SUPPLY CORD
cauTid
DANCE
to SPEAKER
(B)
L
R

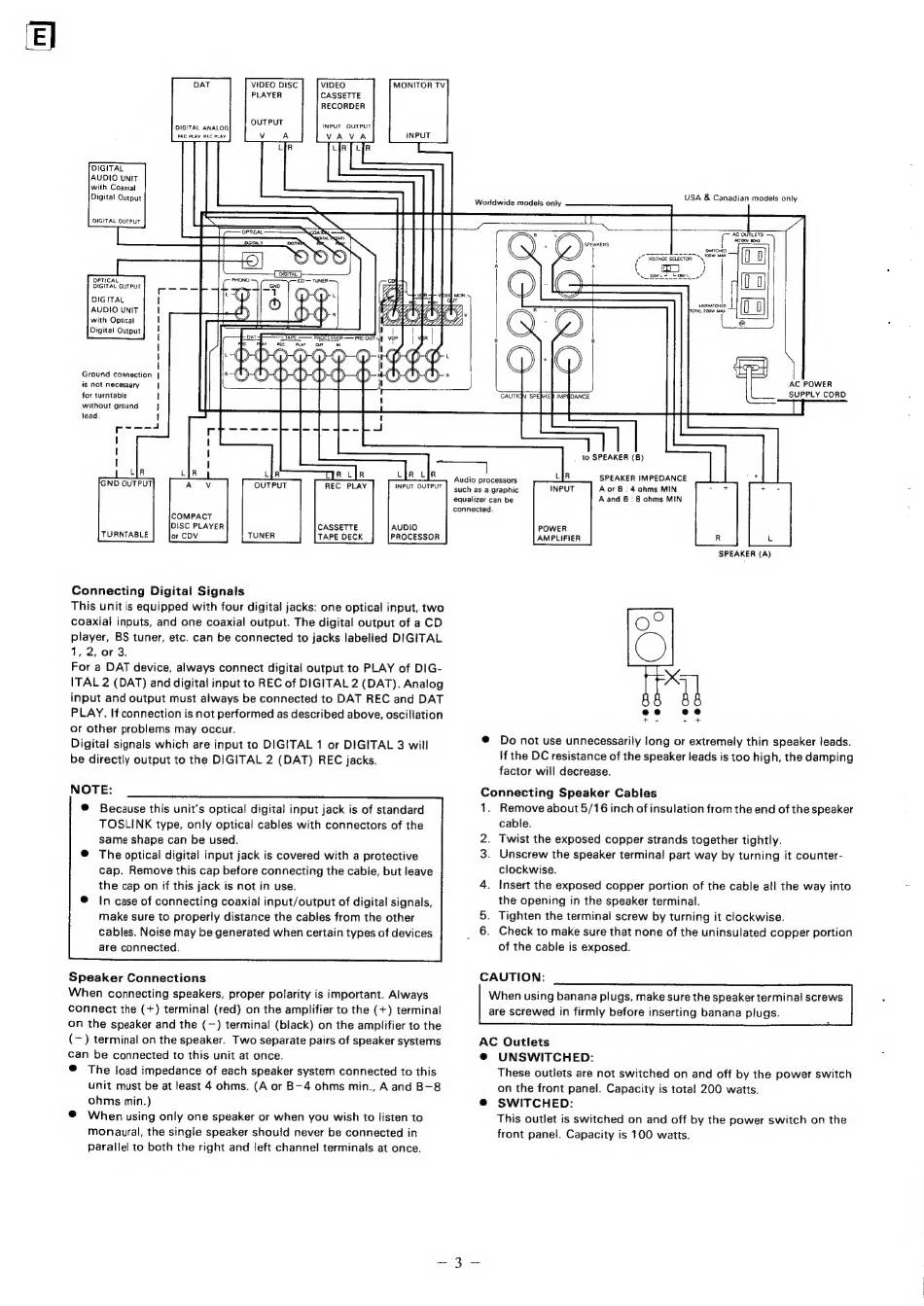

Connecting
Digital Signals
This unit is equipped with four digital jacks: one optical input, two
coaxial inputs, and one coaxial output. The digital output of a CD
player, BS tuner, etc. can be connected to jacks labelled DIGITAL
1, 2, or 3.
For a DAT device, always connect digital output to PLAY of DIG-
ITAL 2 (DAT) and digital input to REC of DIGITAL 2 (DAT). Analog
input and output must always be connected to DAT REC and DAT
PLAY. If connection is not performed as described above, oscillation
or other problems may occur.
Digital signals which are input to DIGITAL 1 or DIGITAL 3 will
be directly output to the DIGITAL 2 (DAT) REC jacks.
NOTE:
@
Because this unit's optical digital input jack is of standard
TOSLINK type, only optical cables with connectors of the
same shape can be used.
The optical digital input jack is covered with a protective
cap. Remove this cap before connecting the cable, but leave
the cap on if this jack is not in use.
In case of connecting coaxial input/output of digital signals,
make sure to properly distance the cables from the other
cables. Noise may be generated when certain types of devices
are connected.
Speaker Connections
When
connecting speakers, proper polarity is important. Always
connect the (+) terminal (red) on the amplifier to the (+) terminal
on the speaker and the (—) terminal (black) on the amplifier to the
(—) terminal on the speaker.
Two separate pairs of speaker systems
Can be connected to this unit at once.
@
The load impedance of each speaker system connected to this
unit must be at least 4 ohms. (A or B-4 ohms min.,
A and B-8
ohms min.)
@
When using only one speaker or when you wish to listen to
monaural, the single speaker should never be connected in
Parallel to both the right and left channel terminals at once.
LR
Audio processors
SPEAKER IMPEDANCE
:
OUTPUT
WweuT OUTPUT | such as a graphic
AorB: 4ahms MIN
=
+.
+
equalizer can be
A and B: 8 ohms MIN
connected.
CASSETTE
AUDIO
POWER
TUNER
TAPE DECK
PROCESSOR
AMPLIFIER
R
t
SPEAKER (A)
@
Do not use unnecessarily long or extremely thin speaker leads.
lf the DC resistance of the speaker leads is too high, the damping
factor will decrease.
Connecting
Speaker Cables
1. Remove about 5/16
inch of insulation from the end of the speaker
cable.
2. Twist the exposed copper strands together tightly.
3. Unscrew the speaker terminal part way by turning it counter-
clockwise.
4. Insert the exposed copper portion of the cable all the way into
the opening in the speaker terminal.
5. Tighten the terminal screw by turning it clockwise.
6. Check to make sure that none of the uninsulated copper portion
of the cable is exposed.
CAUTION:
When using banana plugs, make sure the speaker terminal screws
are screwed in firmly before inserting banana plugs.
AC Outlets
@
UNSWITCHED:
These outlets are not switched on and off by the power switch
on the front panel. Capacity is total 200 watts.
@
SWITCHED:
This outlet is switched on and off by the power switch on the
front panel. Capacity is 100 watts.
