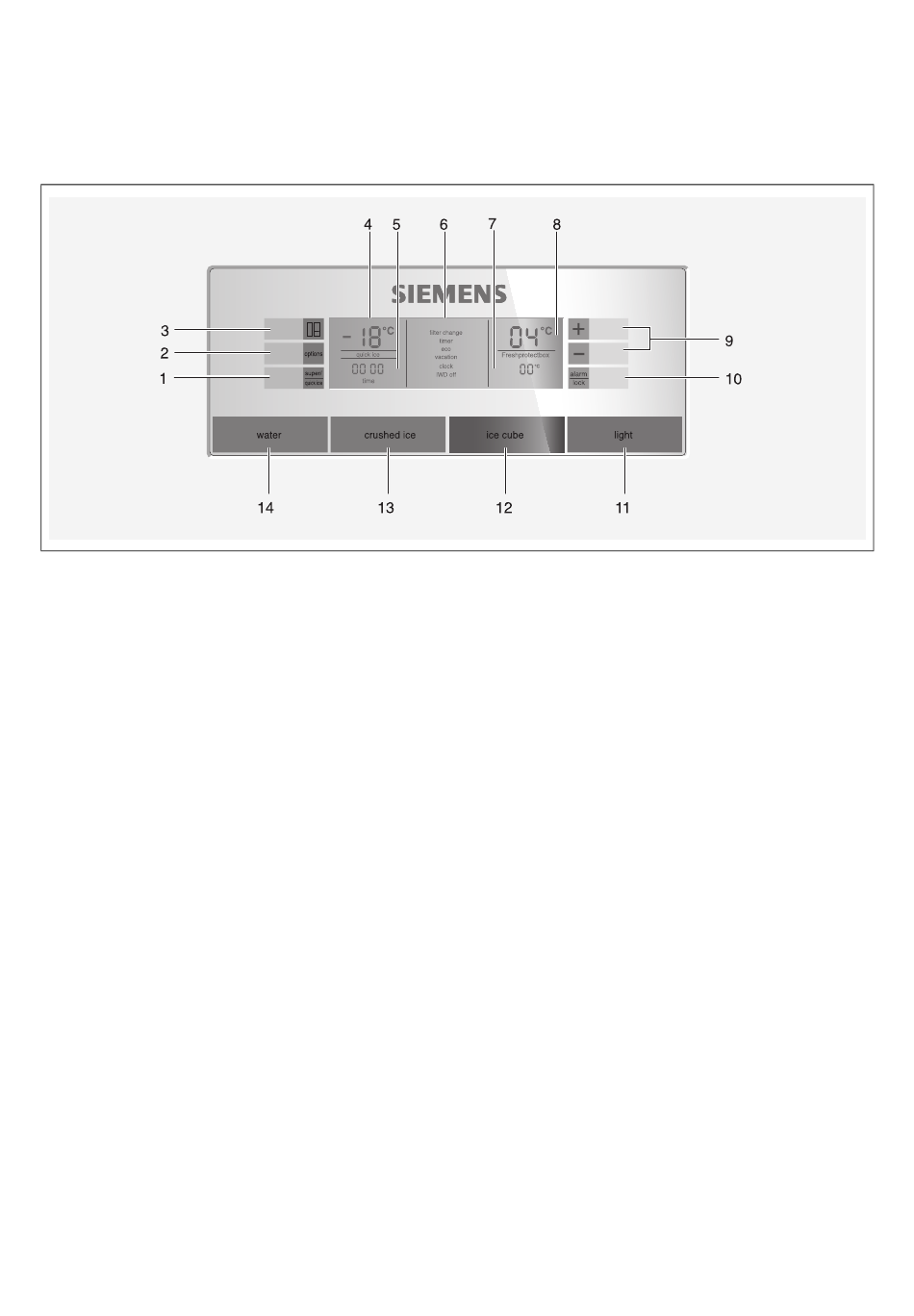

Control and display panel
The display panel and display panel on the door
consists of a touch pad.
Touch the keypad to actuate the corresponding
function.
1
"super/quick ice" button
The button is used to
switch on the super cooling (refrigerator
■
compartment) or super freezing (freezer
compartment) function (see chapter entitled
"Super cooling" or "Super freezing").
activate the [quick ice] function (see chapter
■
"Special functions").
2
"options" button
For selecting the special functions. Keep
pressing the button until the required function is
selected with an arrow (see chapter entitled
"Special functions").
3
"select" button
For making settings in the different temperature
zones (freezer compartment, refrigerator
compartment, "cool-fresh" container). Keep
pressing the button until the required zone is
marked with an arrow.
4
Freezer compartment display
Indicates the current temperature setting
in the freezer compartment.
5
Time display
Displays the current time or the time sequence
when a special function of the timer is activated.
Special functions display
6
Indicates the available special functions (see
chapter "Special functions").
7
"Cool-fresh" container display
Indicates the current temperature setting in
the "cool-fresh" container.
38
8
Refrigerator compartment display
Indicates the current temperature setting
in the refrigerator compartment.
9
Setting buttons +/–
The buttons are used to
set the temperatures in the different cooling
■
zones,
switch the special functions on and off,
■
change the time setting of the "timer" special
■
function.
10
"alarm/lock" button
The button is used to
switch off the warning signal
■
(see chapter Alarm function),
switch the button lock on and off.
■
To switch the button lock on and off, press
button for 5 seconds. When the function is
switched on, "lock" is indicated on the display
panel.
Except the button lock:
If a warning signal sounds, the "alarm/lock"
button can be pressed.
11
On/Off "light" button for ice and water
dispenser
12
Ice dispenser button
13
Dispenser button for crushed ice
14
Water dispenser button
