EN
6. INSTALLATION
* Manifold must be installed, the parameters should be set and tested in a room with a minimum
temperature of 10 °C.
It is used according to the operating conditions listed in Chapter 3.
It is necessary that an installer of the product is trained and has an appropriate licence ac-
cording to national standards. It is outside the scope of these operating instructions to give
detailed guidance on installations.
The installation must conform to the standard MEDICAL GAS PIPELINE SYSTEMS EN ISO
7396-1 as amended. All tests according this standard have to be fulfi lled.
When working with medical gases it is essential that no oil or grease come into contact with
the gas. This means that hands, tools and work clothes be free from oil or grease before any
work is undertaken. Components used for service must be gas compatible. For oxygen ser-
vice must also be degreased and although they will reach you in this condition care must be
taken during storage and handling.
6.1. WALL FIXING
Positioning of the manifold consult with gas supplier
and designer. Mount the manifold at the height to
suit either cylinders or cylinder bundles.

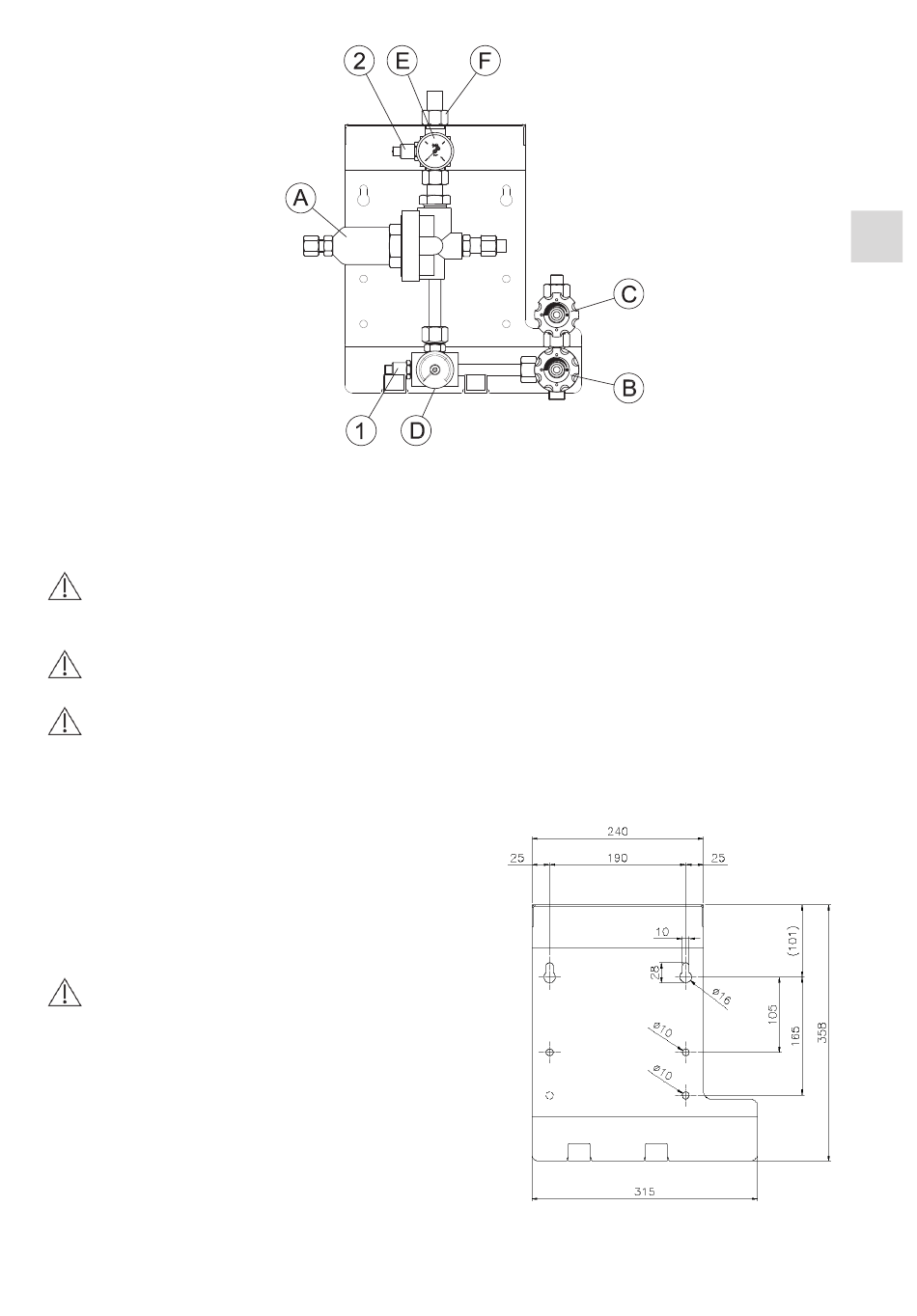

The holes to use for mounting the manifold are
shown in Fig. 2.
Be aware that only upper screw is holding the en-
tire weight of the manifold. Size of used screws
shall conform to total load.
6.2. FITTING OUTLET CONNECTION
Solder diameter 15 mm pipe.
6.3. FITTING SAFETY VALVE AND
PURGE OUTLETS
Solder diameter 10 mm pipes. The pipes from safety
valve and purge can (by use of a T-coupling) be sol-
Fig. 2
dered together and have a common outlet outside
the building.
7/84
