Product information
2.4

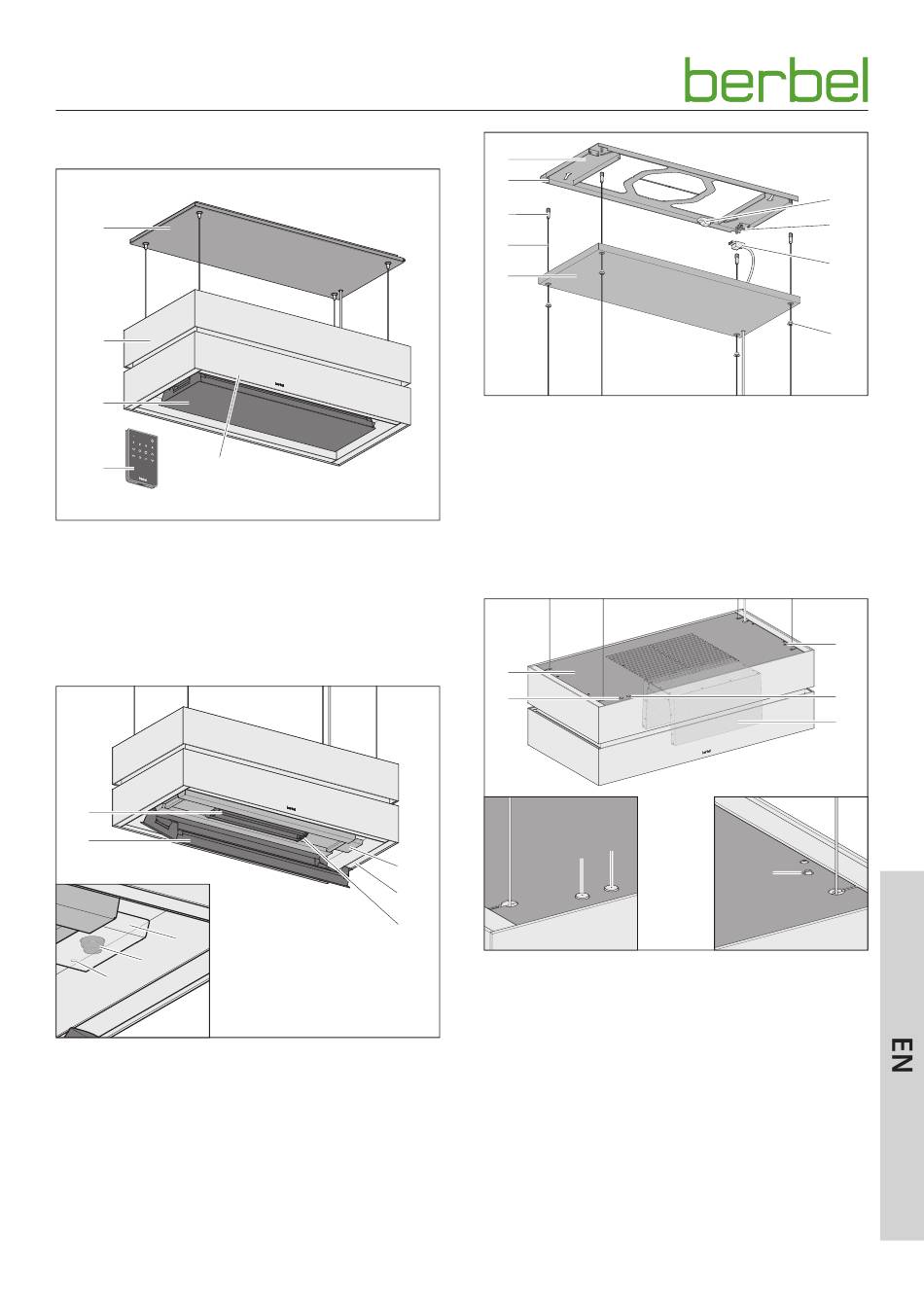

Product overview
A
B
C
D
E
A Ceiling console comprising a ceiling mounting plate and
a cover
B Hood body with effect lighting
C Extraction unit
D BFB3 remote control
D "4.2 Remote control" (page 80).
E Infrared sensor
A
B
C
F
G
D
B
A Capillar Trap (behind the lower section, removable)
B Faceplate with lower section (removable)
C Teach button cover
D Hob lighting
E Ratings plate (behind the Capillar Trap)
F Teach button to adjust the stop positions
G Rotary control for setting the light colour (hob lighting)
6002782_b – 14.09.2016
All manuals and user guides at all-guides.com
A Ceiling mounting plate
B Screwed end
C Mounting sleeve
D Support cable
E Cover for ceiling mounting plate
F Wieland socket
G Cable anchor for mains cable
H Mains cable with Wieland plug
I
C
D
E
A Cover for hood body
B Additional button to switch the hob lighting on/off
C Rotary controller/dimmer
D Additional button to switch power level 3 on/off
E Recirculated air filter
A
B
C
D
E
Lock nut for ceiling mounting plate
A
B
B D
y SK and SKE-L variants:
for adjusting the brightness (effect lighting)
y SKE variants:
for setting the light colour (colour temperature)
y Variants for RGB lighting (special equipment):
no function
F
G
H
I
C
D
E
C
67
