3. Remove the
base
cover.
4. Remove the battery.
Steps

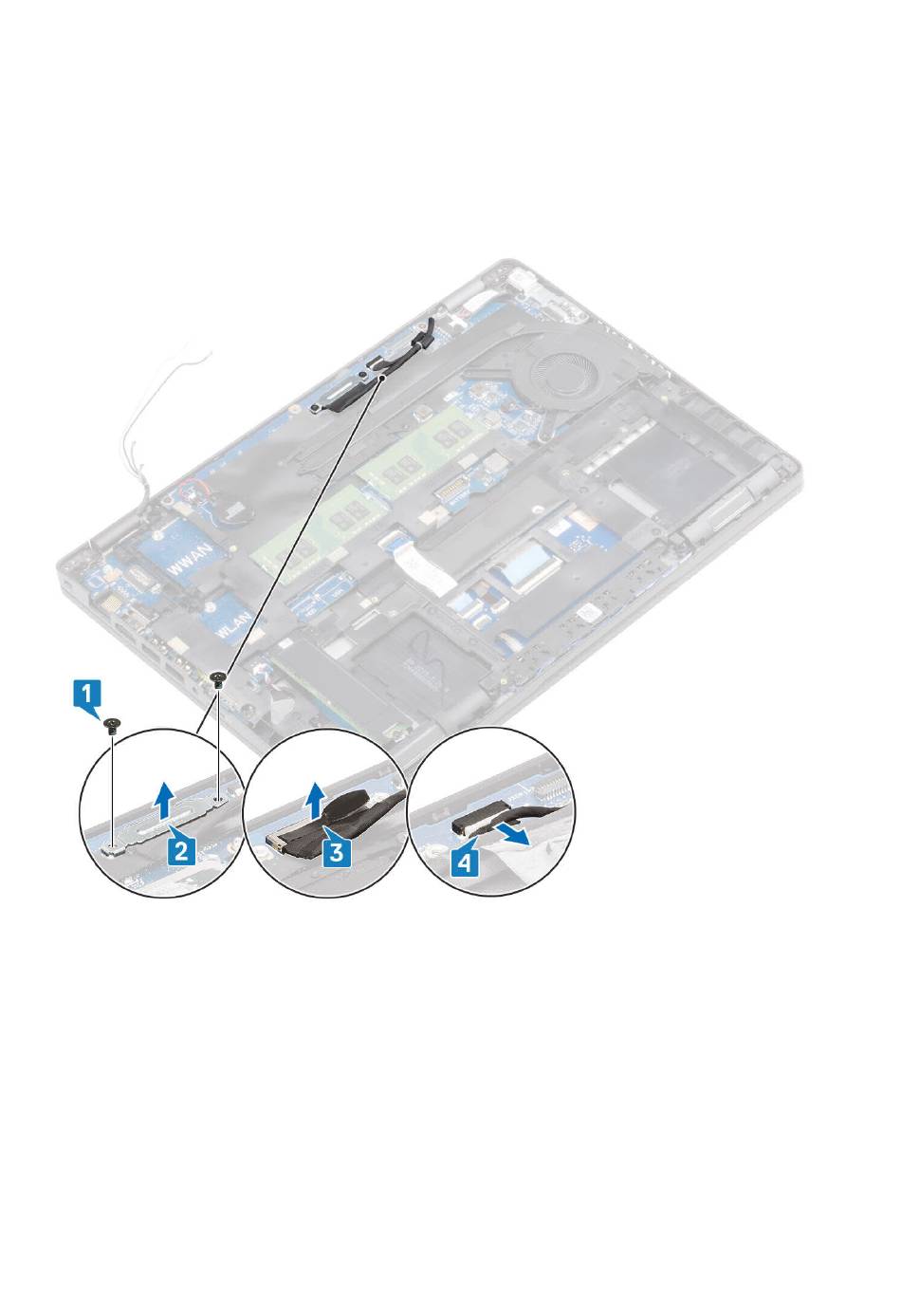

1. Peel the adhesive tape and disconnect the cable from the connector on the system board [1].
2. Remove the two (M2x4) screws that secures the eDP cable bracket to the system board [2].
3. Lift the eDP cable bracket from the system board [3].
4. Disconnect and unroute the eDP cable [4].
5. Open the display assembly to a 180-degree angle and flip over the system, and then place the system on a flat surface.
Onderdelen verwijderen en plaatsen
75
