Installatiehandleiding
19
Uitgangen (200-240 V AC):
X71:1,2 Signaal "Deur gesloten, programma aan"
X72:1 0 V (gemeenschappelijk)
X72:2 Vloeistoftoevoer 1
X72:3 Vloeistoftoevoer 2
X72:4 Vloeistoftoevoer 3
X72:5 Vloeistoftoevoer 4
X73:1 Wasmiddelvakje 1 (Y11)
X73:2 Wasmiddelvakje 2 (Y12)
X73:3 Wasmiddelvakje 3 (Y13)
X73:4 Wasmiddelvakje 4 (Y24)
X73:5 Wasmiddelvakje 2 (Y22)
Ingangen:
X70:1,2 Pauze/PC5
X70:3,4 Start/Stop
Card A

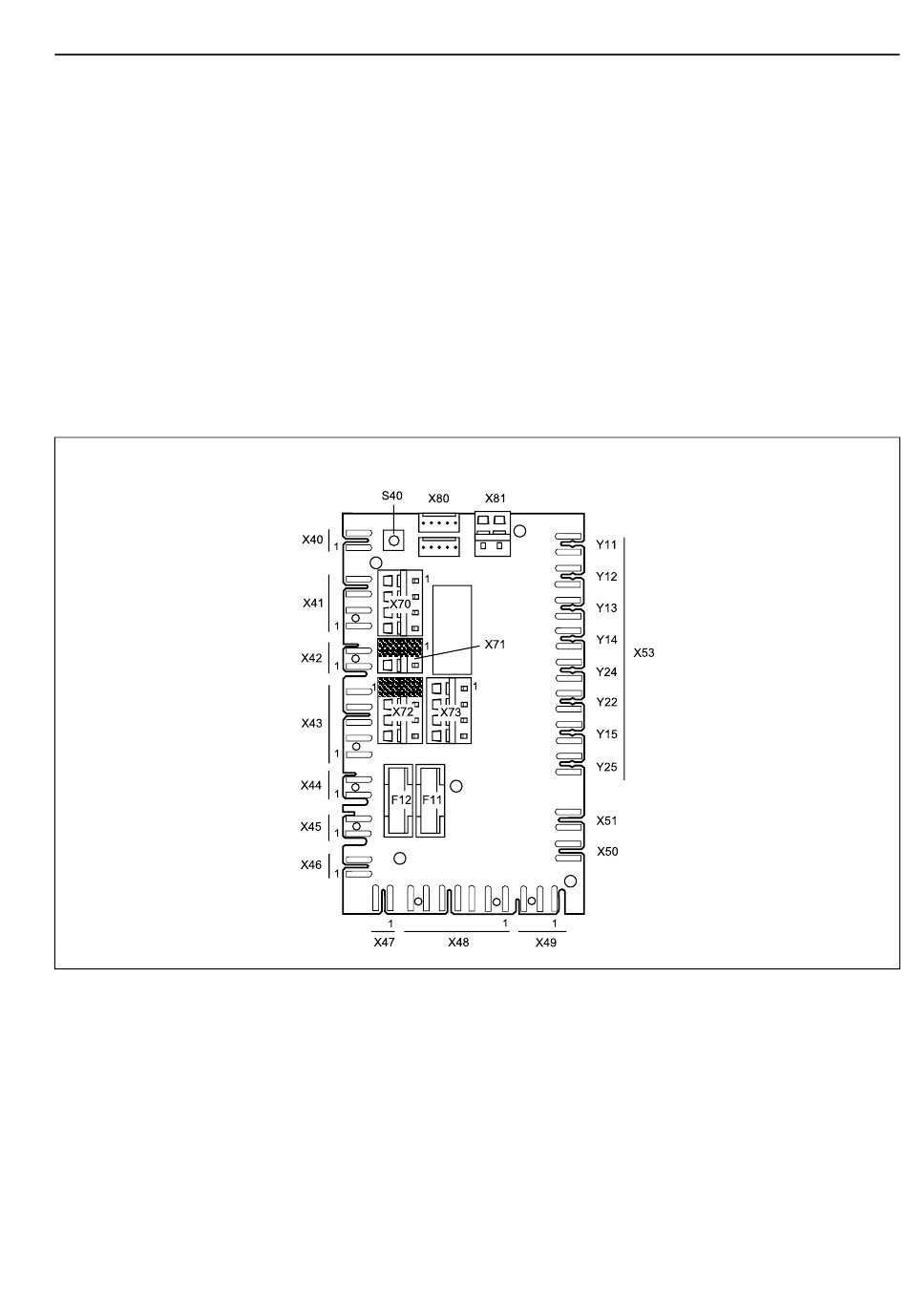

fig.5233D
