5. Setting up the device
WARNING!
Electric shock and risk of burns
Connecting the control unit incorrectly poses a risk of
injury and damage to the device. Risk of burns from the
soldering tool while the control unit is operating.
5 Read the enclosed instructions, the safety instructions
included in these operating instructions as well as
the instructions for your control unit all the way through
and observe the specified precautionary measures
before operating the control unit.
5 Always place the soldering tool in the safety rest
when not in use.
5 Disconnector is not for mains disconnection!
5 Switch off disconnector when not in use
("0" position).
1. Carefully unpack the device.
2. When fitting the new soldering tip, make sure that
the soldering tip is inserted all the way up to the stop
in a single smooth action. Operating
the soldering iron with a soldering tip that is not fully
inserted can cause malfunctions.
Important:
Always ensure that the soldering tip is seated properly.
3. Place the soldering tool in the safety rest.
4. Check whether the mains supply voltage matches the
specification indicated on the rating plate and whether
the disconnecting switch (6) is off, battery version only.
5. Connect the control unit to the mains power using the
power pack (26). Set the disconnecting switch (6) to
"I" to charge the battery. The display (1) shows "OFF".
6. BAT (10) is flashing to indicate charging process.
7. Press the + (2) and – (3) buttons for approx. 1 sec to
switch "ON" the device, "ON" appears on the display (1).
The electronics automatically switch to the actual value
display.
9
All manuals and user guides at all-guides.com
6. Operation

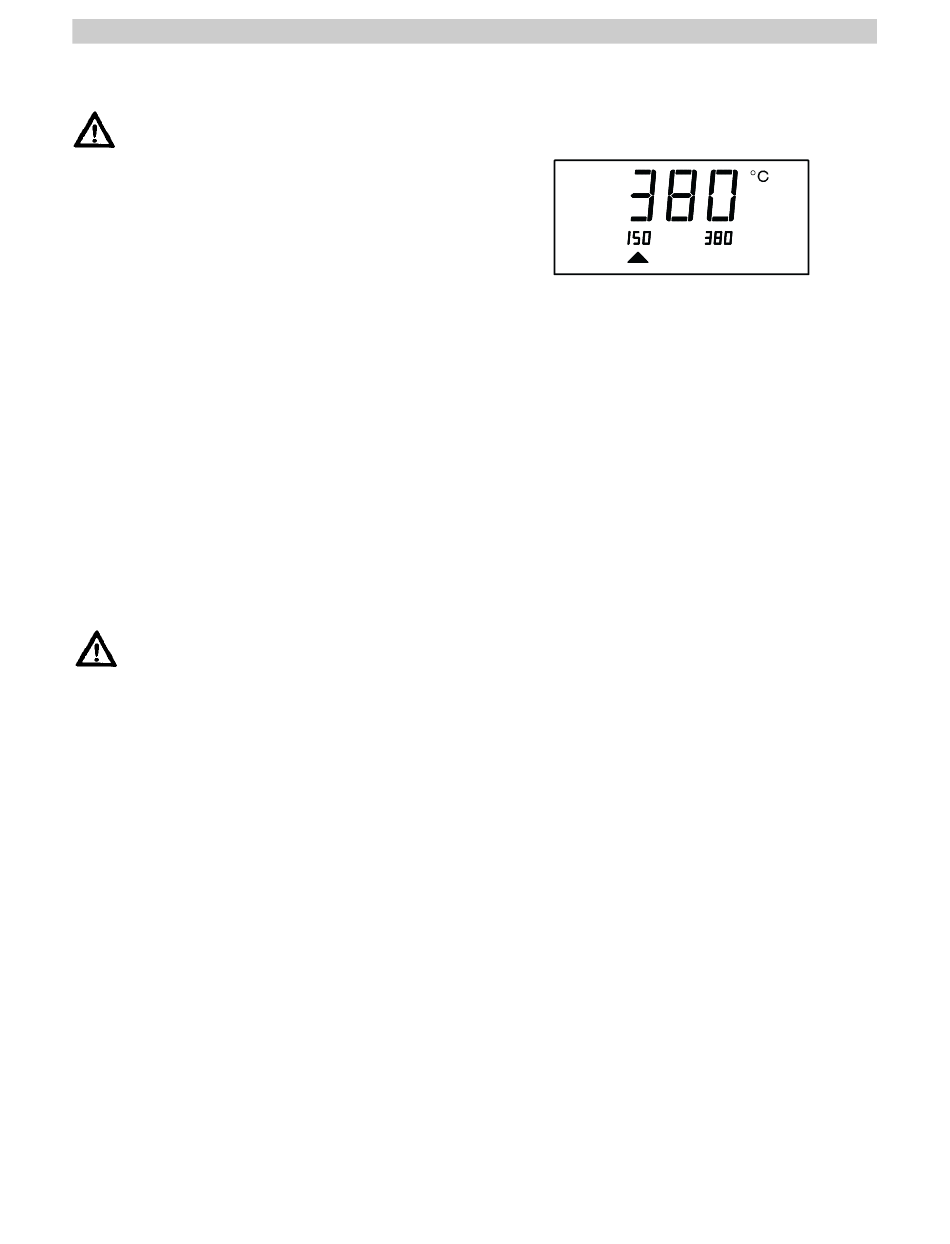

6.1 Setting the temperature
Setting the temperature individually
1. Press the + or - button.
The display switches to the setpoint value. The temperature
symbol (8) flashes.
2. Press the + or - button to set the required setpoint
temperature
- Touching the button briefly alters the setpoint value
- Pressing the button permanently alters the setpoint
The actual value appears on the display again approx. 2
seconds after the buttons are released.
6.2 Soldering
Handling soldering tips
- Coat the tin-plated soldering tip with solder when
- During pauses between soldering and before storing
- Do not use aggressive fluxing agents.
- Always ensure that the soldering tip is seated properly.
- Select the lowest possible working temperature.
- Select the largest possible soldering tip shape for the
- Coat the soldering tip well to ensure efficient heat
- Switch off the system if you do not intend to use the
- Coat the tip before placing the soldering iron in the
- Apply the solder directly at the soldering point, not on
- Do not subject the soldering tip to physical force.
by one degree Celsius / Fahrenheit
value in rapid pass mode.
heating the iron for the first time to remove any oxide
films or impurities from the soldering tip that have
accumulated during storage.
the soldering iron, ensure that the soldering tip is
wellcoated.
application.
Rule of thumb: approx. as large as the component
or mounting surface on the printed circuit board
transfer between the soldering tip and soldering point.
soldering iron for longer periods or activate the
Weller temperature reduction function.
safety rest.
the soldering tip.
