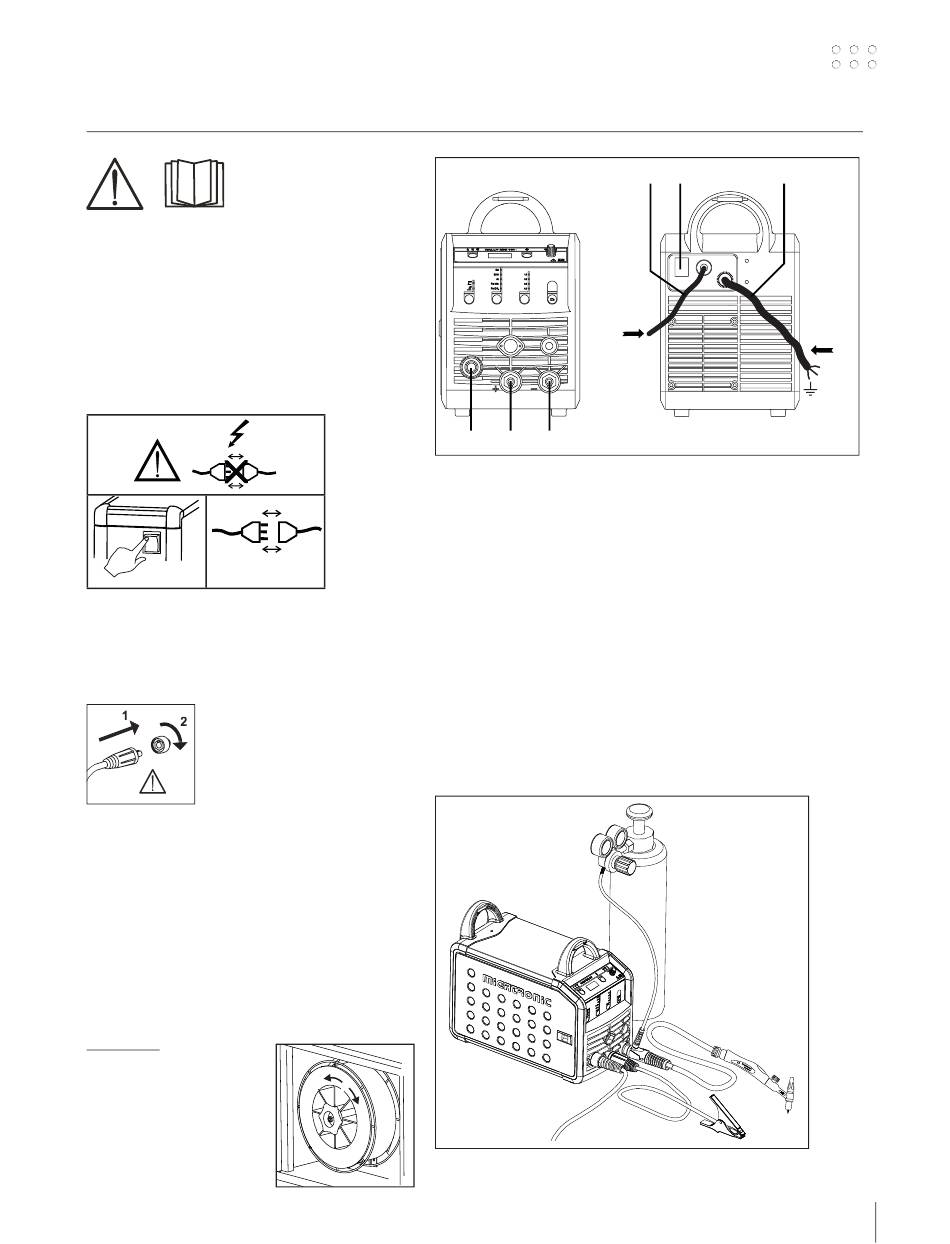

Connection and operation
Warning
Read warning notice and
instruction manual carefully
prior to initial operation and
save the information for later
use.
Permissible installation
Mains connection
Connect the machine to the correct mains supply. Please
read the type plate (U
) on the rear side of the machine.
1
0
l
2
1
Connection of shielding gas
The shielding gas hose on the rear side of the machine (3)
is connected to a gas supply with a pressure reduction to
max. 8 bar.
Important!
In order to avoid destruction of
plugs and cables, good electric
contact is required when connecting
earth cables and welding hoses to
the machine.
Connection of electrode holder for MMA
The electrode holder and earth cable are connected to
plus connection (6) and minus connection (4). Observe
the instructions from the electrode supplier when
selecting polarity.
Adjustment of wire brake
The wire brake must ensure that the wire reel brakes
sufficiently before the welding wire runs over the edge
of the reel. The brake force is dependent on the weight
of the wire reel and wire feed speed.
Adjustment:
•
Adjust the wire brake by
fastening or loosening the
self-locking nut on the axle
of the wire hub.
All manuals and user guides at all-guides.com
5
1. Mains connection
2. Power switch
3. Connection of shielding gas
4. Connection of earth clamp or
electrode holder/TIG torch
5. Connection of welding hose
6. Connection of earth clamp or electrode holder
Torch adjustment (Dialog torch)
The current size can be adjusted both from the machine
and the welding torch if a welding hose with Dialog
torch is in use. The torch adjustment is passive without
Dialog torch.
Installing the TIG torch
3
2
GAS
max. 8 Bar
6
4
1
Power
N
F
7
