4. Remove the
hard-drive
assembly.
About this task

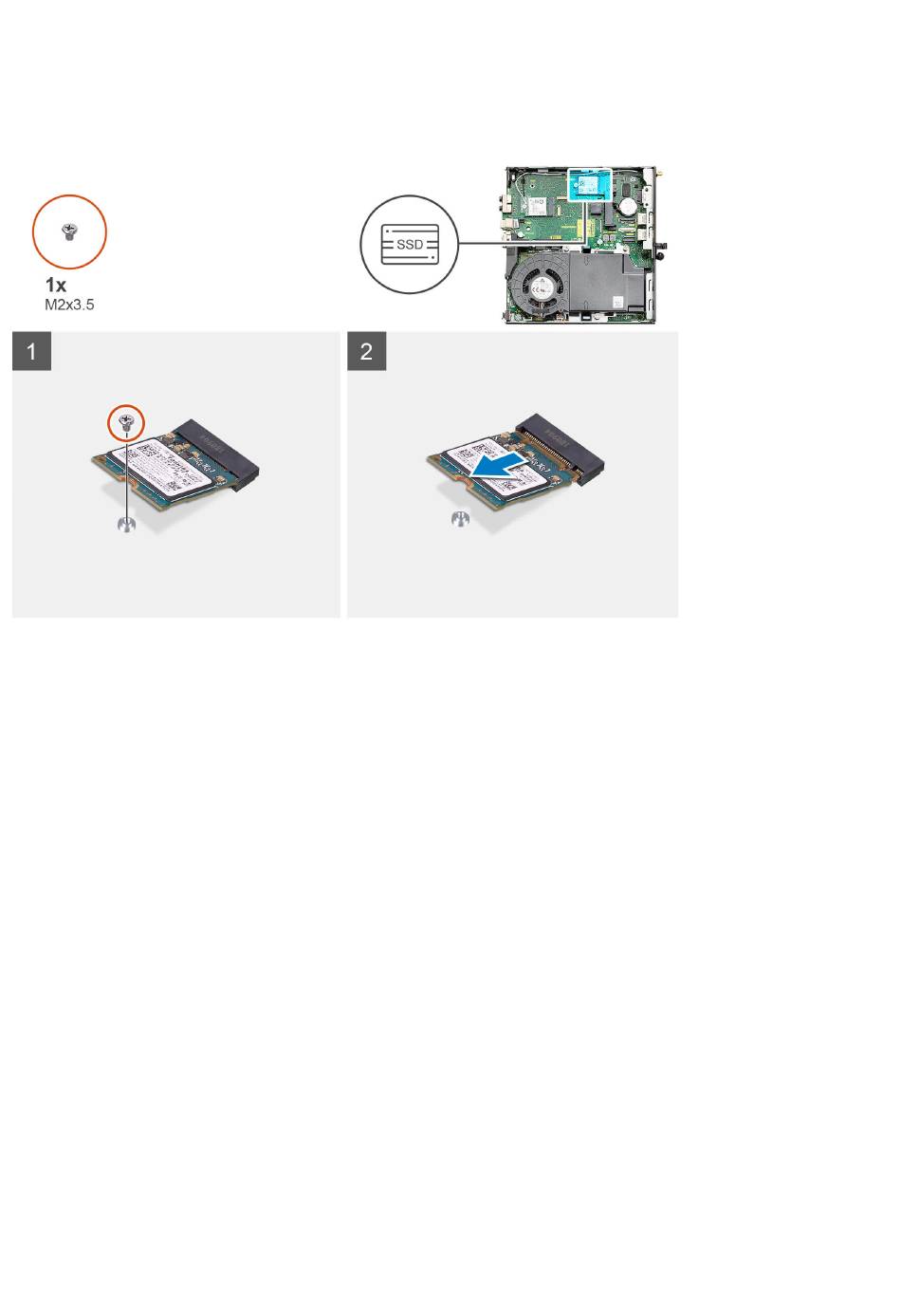

The following images indicate the location of the solid-state drive and provide a visual representation of the removal procedure.
Steps
1. Remove the screw (M2x3.5) that secures the solid-state drive to the system board.
2. Slide and lift the solid-state drive off the system board.
Installing the M.2 2230 PCIe solid-state drive
Prerequisites
Als u een component vervangt, dient u het bestaande component te verwijderen alvorens de installatieprocedure uit te voeren.
About this task
The following image indicates the location of the solid-state drive and provides a visual representation of the installation procedure.
26
Demonteren en hermonteren
