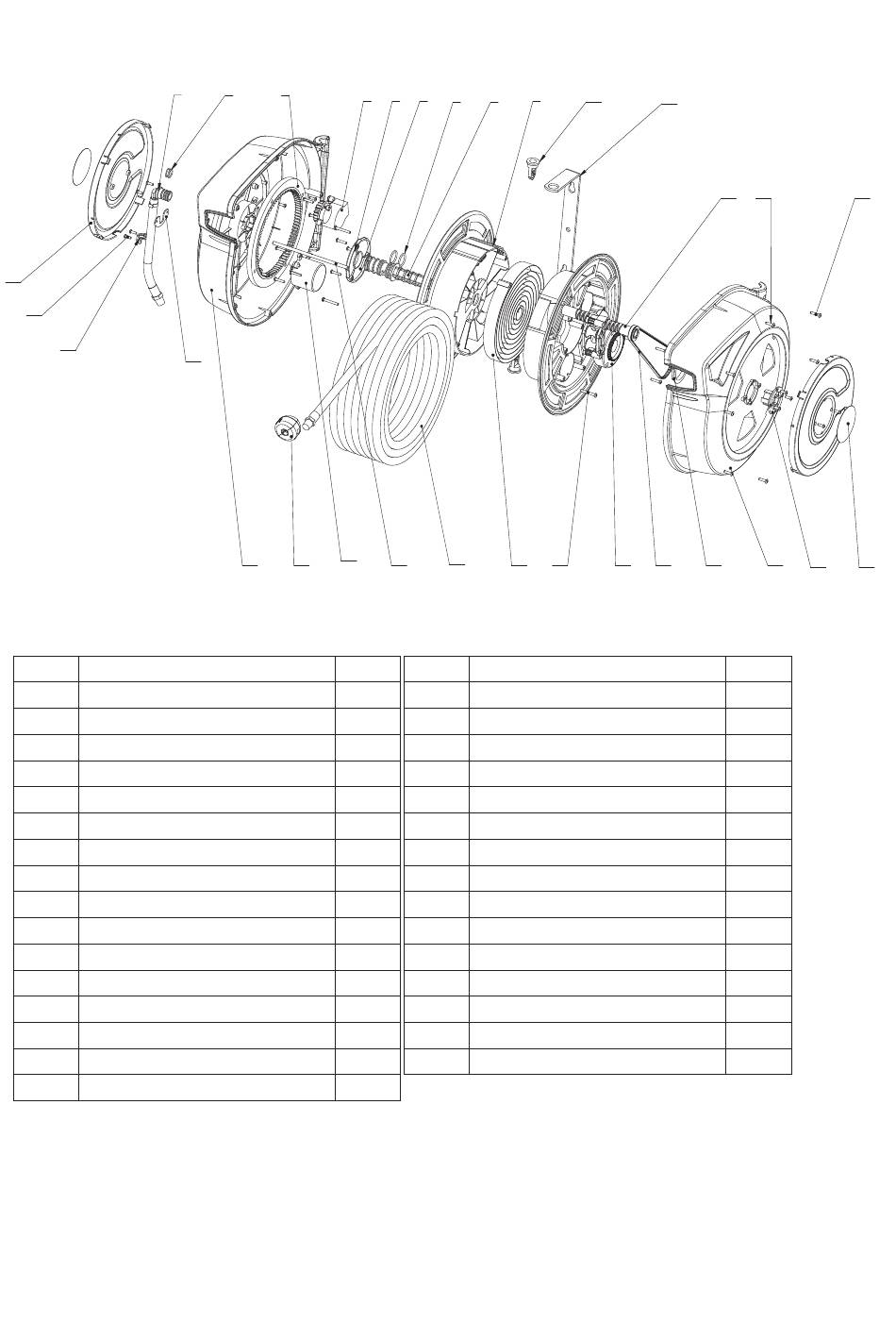

EXPLODED AND PARTS LIST（405107）
1
31
30
29
Part No.
Description
1
Hose Assembly
2
O-Ring
3
Gear
4
Stop at any point Assembly
5
Screws
6
Support cover
7
O-Ring
8
Spool
9
Drum
10
Fixed pin
11
Base
12
Hose Compositor assembly
13
Screws
14
Screws
15
Label
16
Pre tightening cover
2
3
28
25
27
26
Q'ty
4
5
6
7
8
24
23
22
Part No.
Description
1
17
Right casing
2
18
Baffle
1
19
Synchronous belt
1
20
Synchronous wheel
1
21
Screws
6
22
Spring
2
23
Hose Assembly
1
24
Guide bar
2
25
Slow Retraction assembly
2
26
Bumper Block assembly
1
27
Left shell
1
28
Fixed film
8
29
Hose Clamp
18
30
Screws
2
31
Side cover
1
9
10
11
21
20
19
12
13
14
18
17
16
15
Q'ty
1
1
1
1
4
1
1
1
1
1
1
1
1
2
2
