EN | Rain Tent Babboe Curve - Manual for mounting
Congratulations on your new rain tent for your Babboe Curve cargo bike!
Below you will find the instruction manual for the rain tent.
To dismount the tent, follow the steps in the reverse order.
Step 1

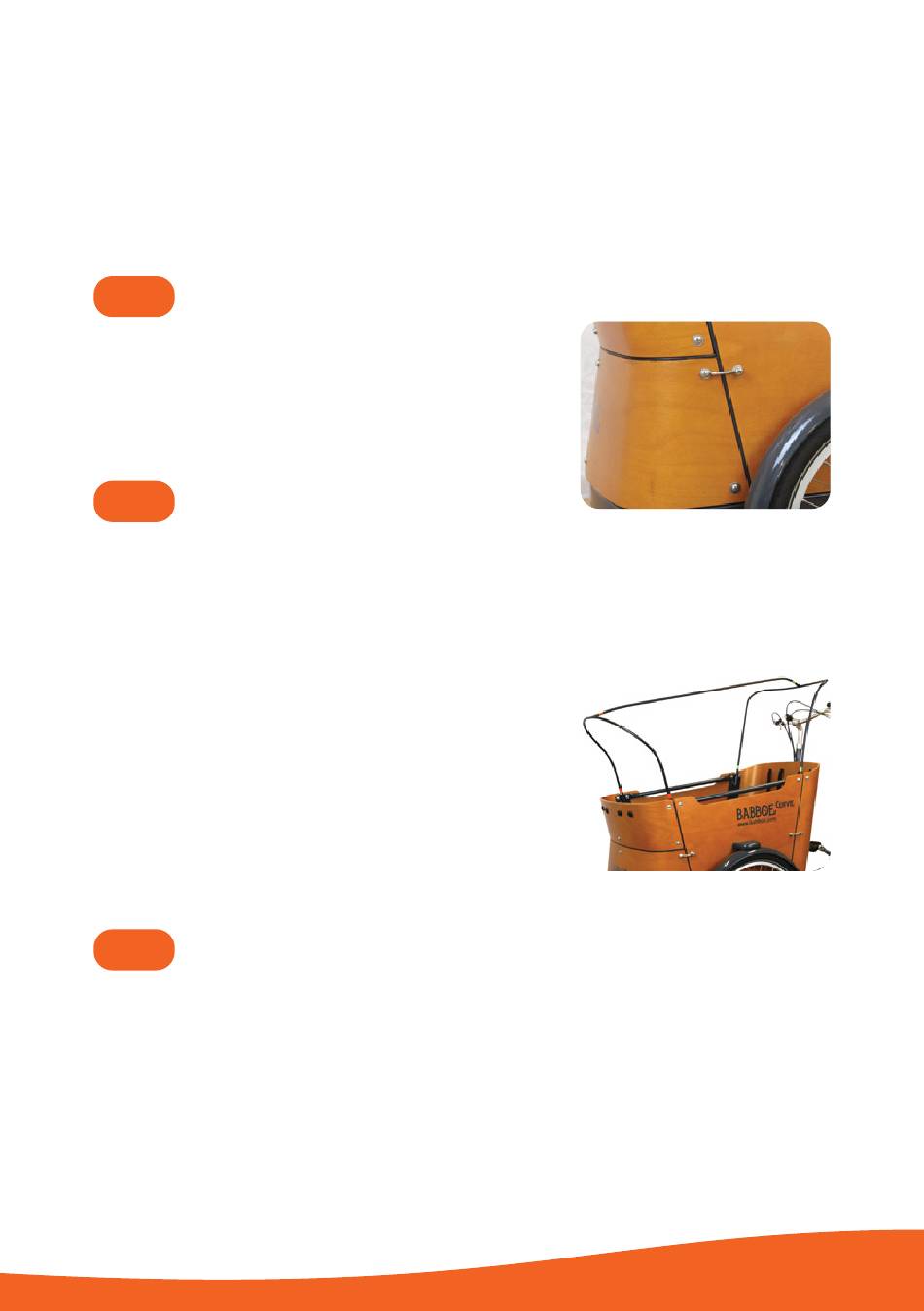

Attaching the side bars to the box
Use the provided sidebars to attach the tent properly.
Unscrew the central nuts and bolts at the sides of the
box. Attach the sidebars with these nuts and bolts,
leaving the shims out. You can remove the bench from
the slot to make it easier to remove the nuts and bolts.
Step 2
Mounting the poles to the box
Mounting the poles to the carrier is simple, however, it should happen in the following
order:
1.
First, assemble the poles for the side of the handlebar (with the green sticker BACK)
and then insert them into the slots on the side of
the handlebar up to wider section of the poles
2.
Then, assemble the both parts of the central bar
and then insert them into the inserted poles
3.
Assemble the poles for the front side (with the red
sticker FRONT) and insert them into the central part
4.
Place the front poles into the slots on the front side
up to wider section of the poles. This creates the
necessary tension on the poles, ensuring a secure
structure
Attaching the canvas
Step 3
The order of assembly is essential for an optimum fit:
1.
Unfold the tent canvas and unzip all zips
2.
Place the canvas over the poles. The side with an opening for ventilation is placed at
the side of the handlebar.
3.
First pull the back over the frame. Make sure the frame fits perfectly in the corner of
the tent and the top corners of the frame fit in the curve of the tent
