MCB Connections wired by the user
AMBERAIR COMPACT S-R V v2024.3
2
3
+CB
-N1
MCB V1.0
-FA
Jumper*
*Jumper wired by manufacturer
+UC

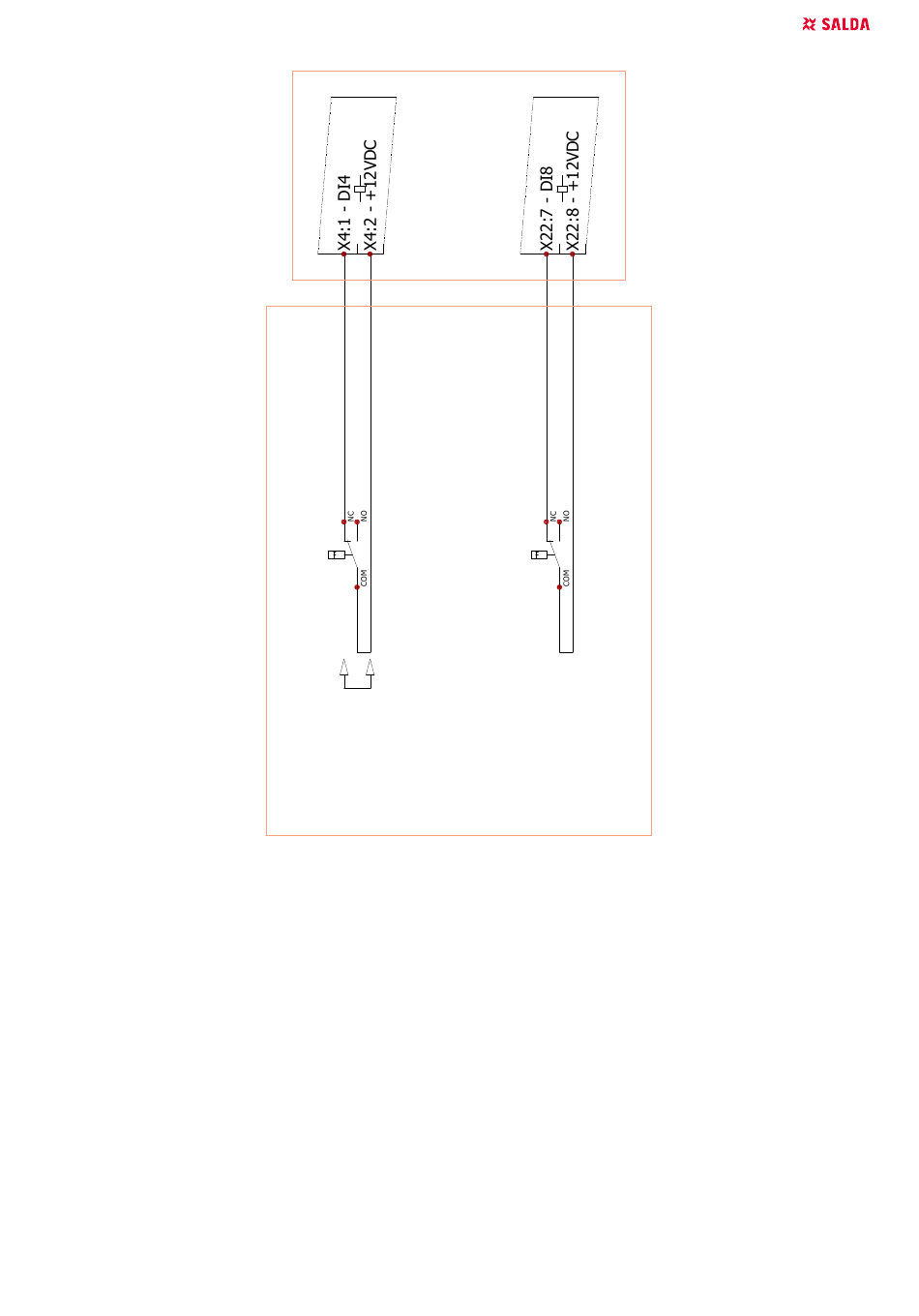

Afb. 4.15.2.2 Aansluiting brand- en openhaard beveiligingsschakelaar
4
-N2
EX1 V1.0
-FPP
Digital inputs and outputs
Connections principal scheme
5
6
+CB
-N2
EX1 V2.0
-START
24VDC
24VDC
max. 50mA
max. 50m
1.2W
1.2W
+UC
DRAWN B
CHECKED
APPROVE
NL |
19
-ST
