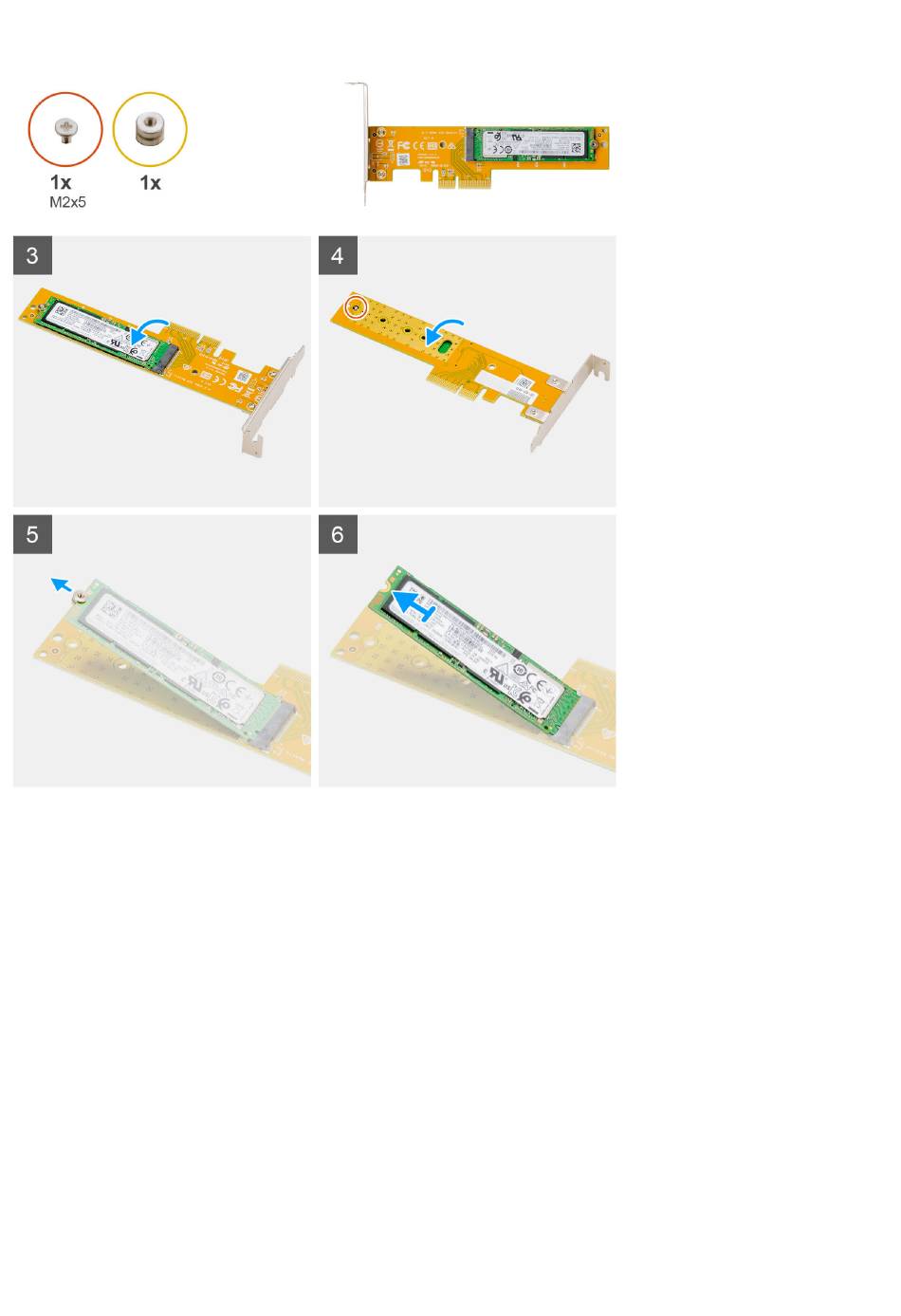

Steps
1. Pull the metal tab to open the expansion card latch.
2. Slide the Dell Ultra speed drive along the edges of the riser card to release it from the riser card.
3. Flip over the Dell Ultra Speed Drive with SSD facing down.
4. Loosen the single screw (M2x5) securing the standoff nut to the Dell Ultra Speed Drive.
5. Remove the standoff nut from the SSD.
6. Slide the SSD out of the M.2 slot on the Dell Ultra Speed Drive.
Installing the Dell Ultra Speed Drive
Prerequisites
Als u een component vervangt, dient u het bestaande component te verwijderen alvorens de installatieprocedure uit te voeren.
About this task
The following image indicates the location of the Dell Ultra Speed Drive and provides a visual representation of the installation procedure.
Demonteren en hermonteren
51
