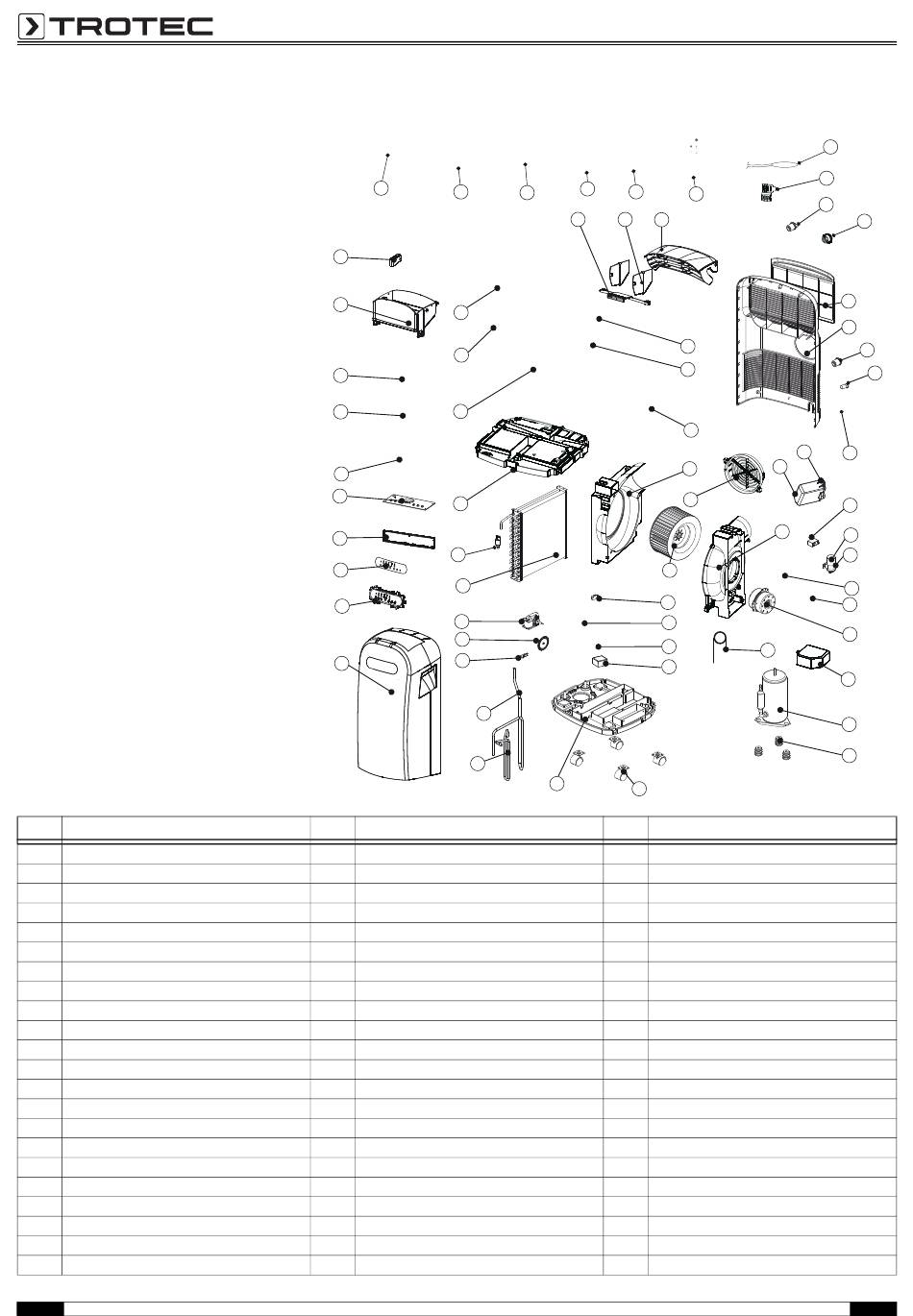

Reserveonderdeeloverzicht en reserveonderdeellijst
Opmerking!
De positienummers van de reserveonderdelen onderscheiden zich
van de in de bedieningshandleiding gebruikte positienummers
van de onderdelen.
Nr.
Reserveonderdeel
1
base pan
2
caster
3
strike
4
fan motor (WT-15D1-01)
5
blade
6
drain bucket cover
7
float (a)
8
float (b)
9
micro switch
10
compressor ass'y (44N097-A1)
11
rubber
12
discharge pipe
13
suction pipe
14
condenser ass'y
15
power supply cord complete
16
capillary tube
17
fan casing
18
blower wheel
19
fan motor (LS-53D1-4P)
20
fan casing
21
fixture
22
capacitor (2.5 μF/450 V)(for fan motor(19))
14
59
60
30
41
39
38
24
27
37
28
23
31
48
58
47
1 4
46
4
5
3
45
1 3
12
Nr.
Reserveonderdeel
23
pc board
24
control board
25
capacitor (25 μF/450 V)(for compressor(10)) 47
26
strike
27
fixture
28
cover
29
terminal block
30
fixture
31
plate
32
capacitor (2 μF/450 V)(for fan motor(36))
33
cover
34
fixture
35
evaporator ass'y
36
fan motor (LS-16D3-06)
37
fan casing
38
cross flow fan
39
fan casing
40
bearing
41
discharge grille
42
fan-air deflector (a)
43
fan-air deflector (b)
44
bar
Bedieningshandleiding – lokale airconditioner PAC 3500
ON/OFF
Fan Speed
Timer
62
63
61
64
44
43
42
36
40
35
20
21
1 8
9
6
7
8
1
2
Nr.
Reserveonderdeel
45
front panel
46
control plate
control board
48
fixture
49
rear panel
50
air filter
51
soft cap (a)
52
plug (a)
53
plug (b)
54
soft cap (b)
55
fixture
56
sensor (for indoor)
57
cover
58
y tube
59
heat exhaust hose
60
heat exhaust hose connector
61
discharge grille
62
fixture
63
cover
64
remote control ass'y
Mode
56
55
54
53
50
49
52
34
15
33
22
17
25
26
32
29
1 9
1 6
57
10
11
NL
51
