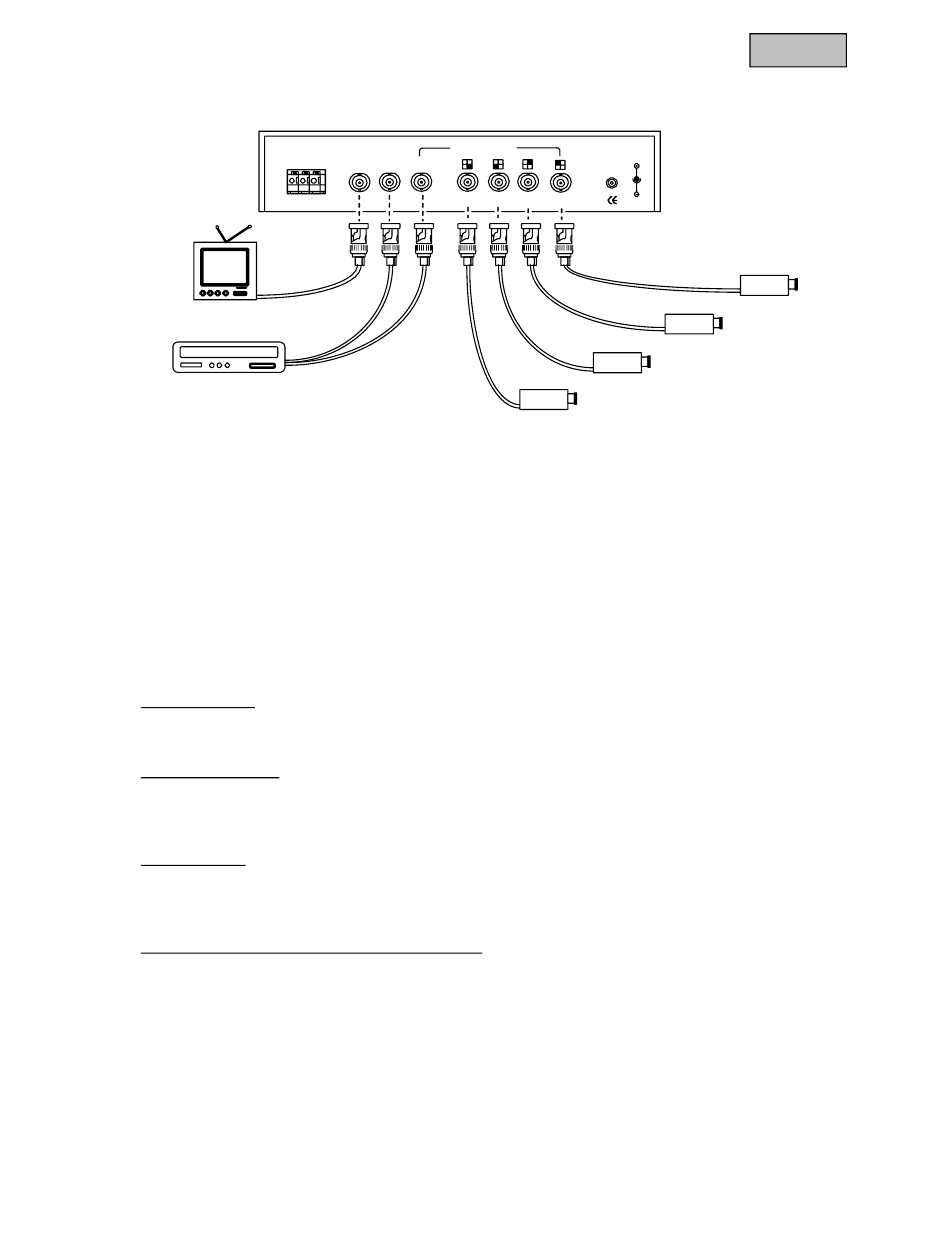

6. System design
RELAY OUT
COM/NO/NC
Master
Monitor
VCR
7. Function description
7.1 Switching on
Every time the device is started, it goes through a warm-up phase and runs a self-test.
It first checks whether cameras are connected to the input sockets. If not, "LOSS" appears in the
corresponding sector of the display. If cameras lose the connection to the Quad, "LOSS" appears in the
corresponding sector of the display.
7.2 Live view
Full-screen view:
Press one of the channel keys 1–4 to select a channel for the full-screen display.
Quad image display:
Press the [QUAD] key to see all four channels in quad mode.
Freeze function:
You can now press channel keys 1–4 and also press the [FREEZE] key to see a frozen image from the
selected channel.
PIP (Picture In Picture) / POP (Picture On Picture):
Press [MODE] to activate the PIP/POP function.
You can change the type of display by pressing several times
•
Press the [MODE] key once: PIP with 3 pictures (1 large picture, 2 small pictures)
•
Press the [MODE] key twice: PIP with 2 pictures (1 large picture, 1 small picture)
•
Press the [MODE] key three times: POP with 2 pictures (1 picture on the left, 1 picture on the
right)
All manuals and user guides at all-guides.com
VIDEO OUT
VIDEO IN
MONITOR
QUAD
VCR
OUT
OUT
IN
4
3
27
POWER IN
DC 12V
2
1
Kamera 2
Kamera 3
Kamera 4
English
Kamera 1
