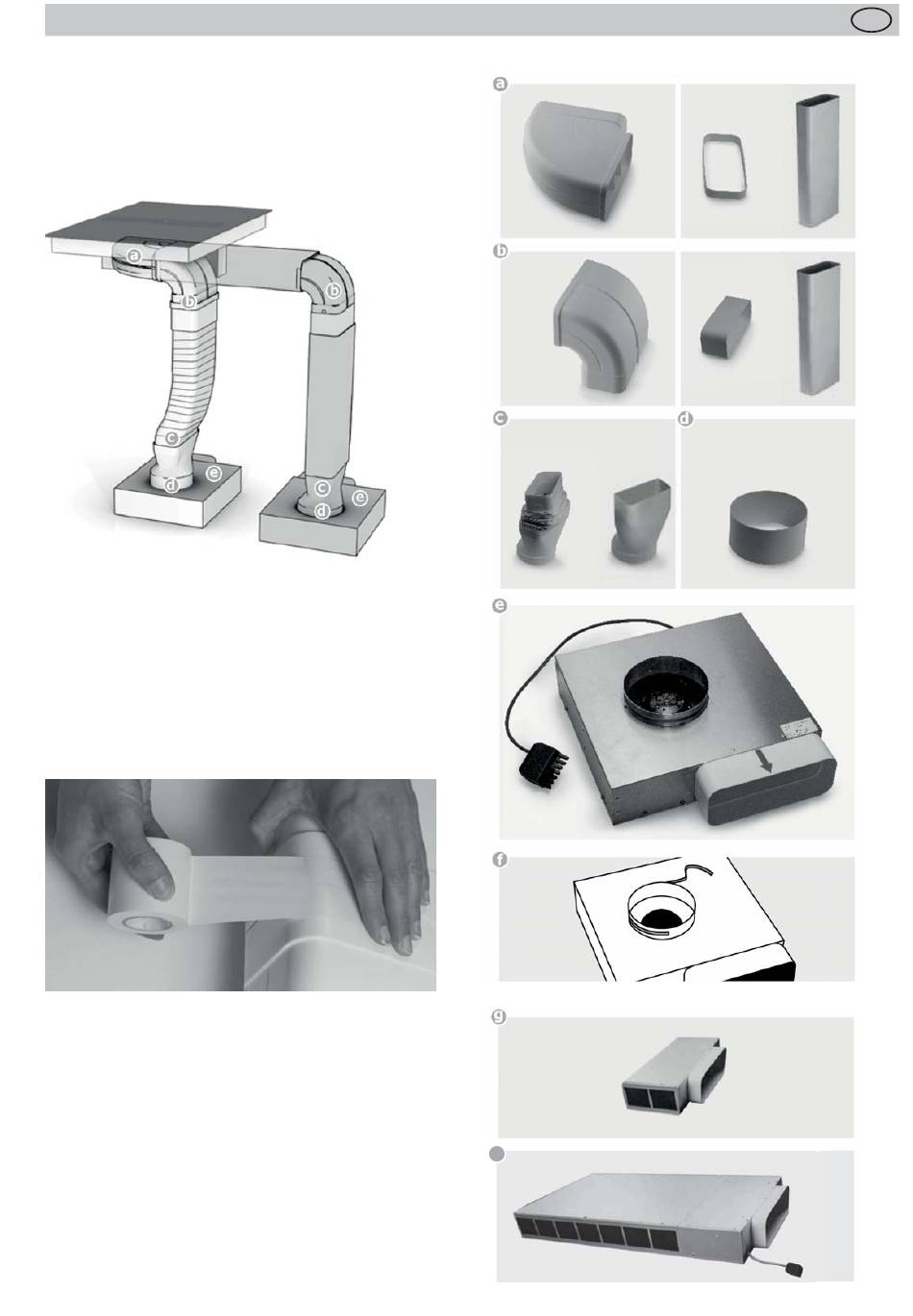

7.6 Extraction air system assembly
The hob and the fan can be connected with a fl exible hose
or a fl at duct.
Shorten the fl at duct with a fi ne saw if necessary.
Option fl exib-
le hose
On point c
The fl exible connection piece is used for a worktop thick-
ness of 600 mm. Please make sure that installation is as
taut and crease-free as possible by shortening excess
material.
On point f
Apply sealing tape to the plinth fan connecting pieces (f)
before attaching the adapter piece (d) to the plinth fan (e).
Important:
The components must all be fi rmly fastened as shown
with the adhesive tape enclosed after they have been
attached.
Instructions for assembly
Option fl at
duct
Exhaust air duct components (optional):
Fan
Sealing tape
Plinth fi lter (optional):
Charcoal fi lter
h
Plasmafi lter
GB
45
