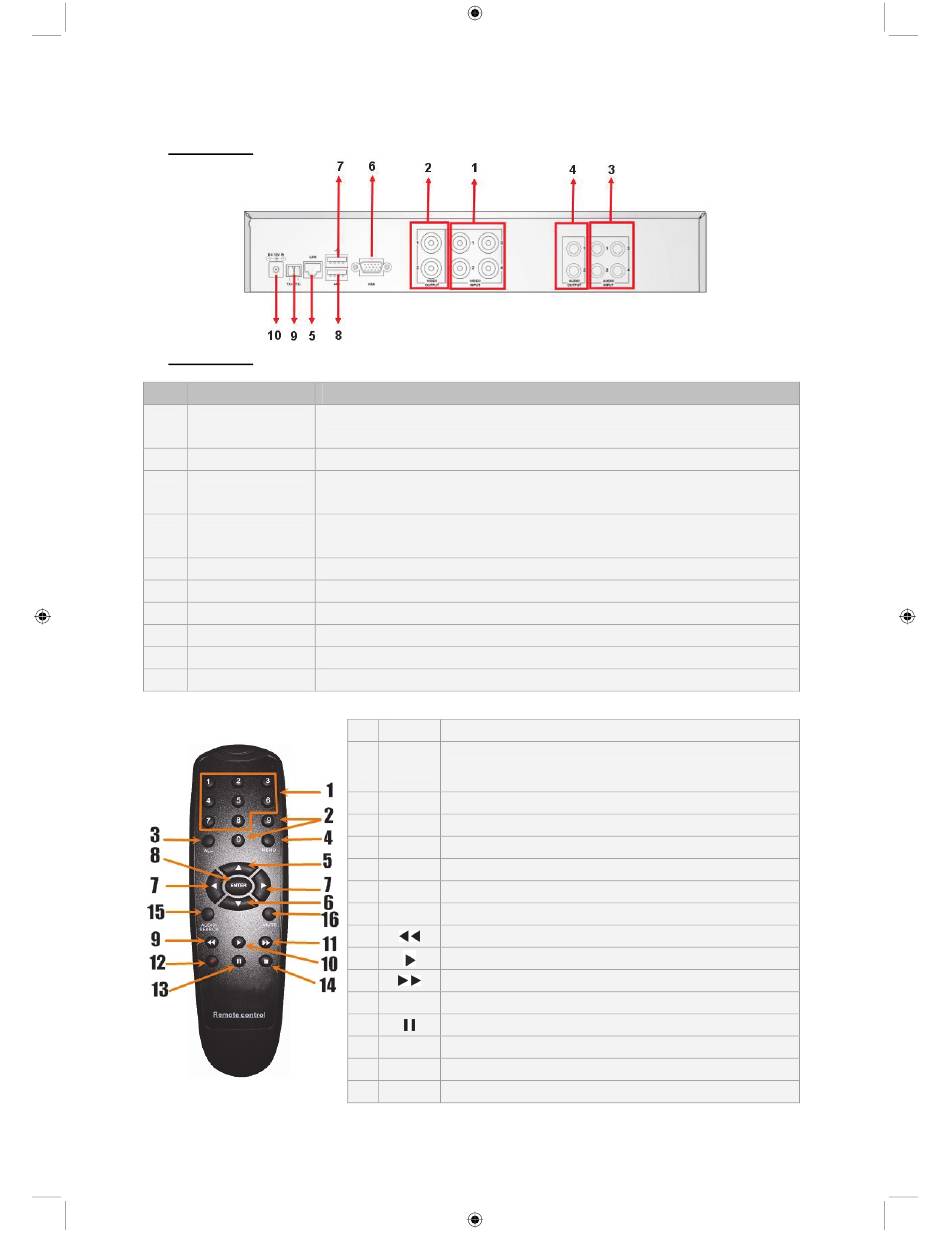

Description of rear panel:
SEC-DVR404
SEC-DVR408
No.
Connector
SEC-DVR404:Connect CH1-4 video input device (BNC)
1.
Video input
SEC-DVR408:Connect CH1-8 video input device (BNC)
2.
Video output
Connect monitor output (BNC)
4CH DVR: 4CH audio input (RCA)
3.
Audio input
8CH DVR: 4CH audio input (RCA)
4CH DVR: 2CH output (RCA)
4.
Audio output
8CH DVR: 2CH output (RCA)
5.
Ethernet
Connect LAN, Ethernet (RJ45)
6.
VGA output
Connect to VGA monitor
7.
USB mouse
Connect USB mouse
8.
USB device
Connect USB device (Flash drive, hard Drive and tecorder etc)
9.
RS-485
RS485 interface
10.
Power
Connect power supply - 12 V DC, 3 A
Description of remote control:
Function
1
1-8
Channel select 1-8 ; Numeric keys
Numeric keys
2
9, 0
(The numeric key "0" can be used for switching to
the OSD control panel)
3
ALL
Display all channels
4
Menu
Enter / Exit main menu
5
▲
Up key
6
▼
Down key
7
◄►
Left / Right key
8
SEL
Select key/ Edit key
9
Rewind key
10
Play key, enter recording search menu
11
Forward key
12
●
Manual recording
13
Pause / Frame play
14
■
Stop manual recording; stop playback
15
Audio
Undefined
16
Mute
Undefined
