The lava rocks and logs can scorch black in time. This has to do with soot formation which always occurs in devices
that show a yellow flame. This soot can be removed by blowing / vacuuming with a vacuum cleaner. The soot
may also be brushed off with a dry brush.
-
Installation of the gas bottle outside of the Cosibrixx
If you want to place the gas bottle outside of the Cosibrixx, for example because you are using a gas
bottle with more capacity than is specified in the list, you can also place the gas bottle outside the
Cosibrixx. This can be done in the following way:
1. Guide the gas hose outside the Cosibrixx by placing the gas hose underneath the model.
2. The supplied hose has a length of 1.5 m. Therefore, the gas bottle should be placed at a maximum
distance of 1 meter away from the Cosibrixx. Children and pets can trip over the hose, so place
the hose outside of the walking area, where children and pets can't reach it.
3. Connect the gas bottle to the supplied pressure regulator and open the gas bottle open when you
want to use the Cosibrixx. When you are not using the Cosibrixx make sure the gas valve on the
gas bottle is turned off.
3. Replacing the cylinder
Do you need to replace the gas bottle, because it's empty? Make sure the model, ceramic logs and lava rocks
are completely cooled down! Use the description in point 2 "placing the gas bottle" and remove the old bottle.
You can have the old bottle filled up at your local gas supplier.
4. Replacing the hose and pressure regulator
Replace your propane gas hose every three years. This is a national advice. Pressure regulators can go for five
years. After the pressure regulator and the gas hose have been replaced, the unit must always be checked for
gas leaks.
How to check your Cosibrixx for gas leaks:
-
Open the gas bottle but do not turn on the Cosibrixx!
-
Make a solution with 50% water and 50% detergent, and spray this solution on each connection and the
hose. If there is a gas leak in the connection or the hose you will see air bubbles arise.
-
If bubbles are visible, immediately shut off the gas. Buy a new hose or regulator.
-
Does the problem keep occurring? Please contact a qualified gas engineer.
Replace the hose or pressure regulator and make sure that they are installed in the exact same way. In the
Netherlands, a 30mbar pressure regulator should be placed. The hose must not be longer than 2.5 meters.
When in doubt, always consult a qualified gas engineer.
5. Replacing the battery for the piezo ignition
The Cosibrixx features a piezo ignition that runs on one AA battery. This battery may run out after repeated use
of the device. The battery can be replaced as follows:
2. Placing the bottle
When you have purchased a gas bottle that is prescribed in
the supplied list, you can now place the gas bottle in the
Cosibrixx. However, this is not mandatory. You can also
choose to place the gas bottle outside of the unit.

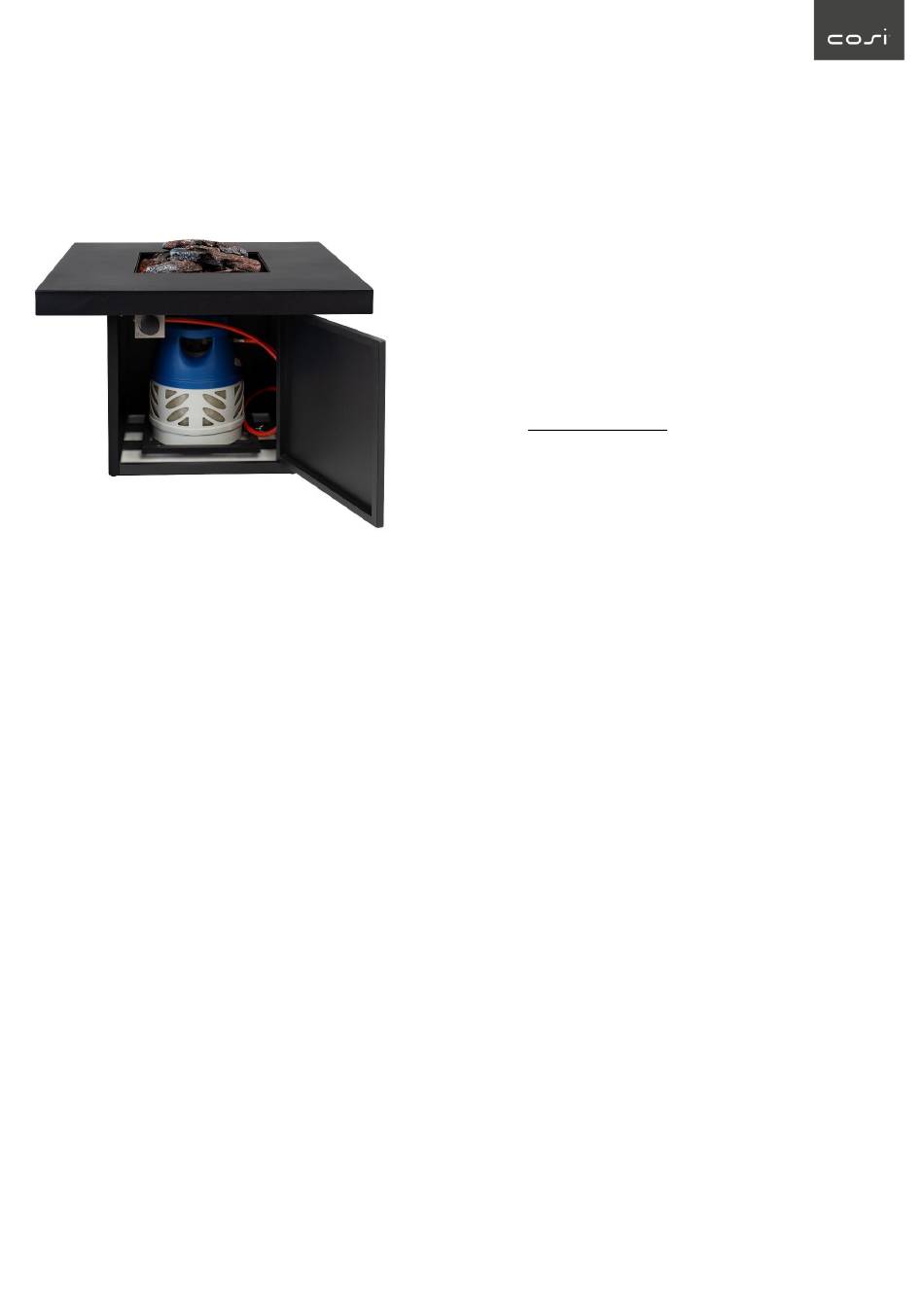

- Placing the gas bottle inside of the Cosibrixx
Underneath the Cosibrixx there is a gas tank unit. Open the
door by pressing the top left corner. Place the gas bottle on
the steel frame and connect the regulator to the gas bottle.
Tighten the regulator by hand.
The hose must always be bent down towards the gas bottle.
Make sure that the hose is never pressed against any hot
surfaces of the appliance.
When you are not using the Cosibrixx, make sure you always
turn off the gas valve of the gas bottle.
13
